30KW @1000V Charger Power Module is specially designed for EV DC chargers. It has high efficiency, low fan noise, high power density and high reliability advantage. 3 phase 4 wire AC input, DC output voltage range is from 150 to 1000VDC with 30kW output power, EMC/EMI satisfy TUV CE certicification with class B level, and safety satisfy both TUV UL and CE certicification.
DC Max Input Current:58A
Input Frequency Range:45Hz ~65Hz
DC Output Current:0~100A
DC Output Voltage:150Vdc ~1000Vdc
DC Output Power:30KW@ Voltage >400VDC
Operating Temperature:-40℃ ~ +75℃

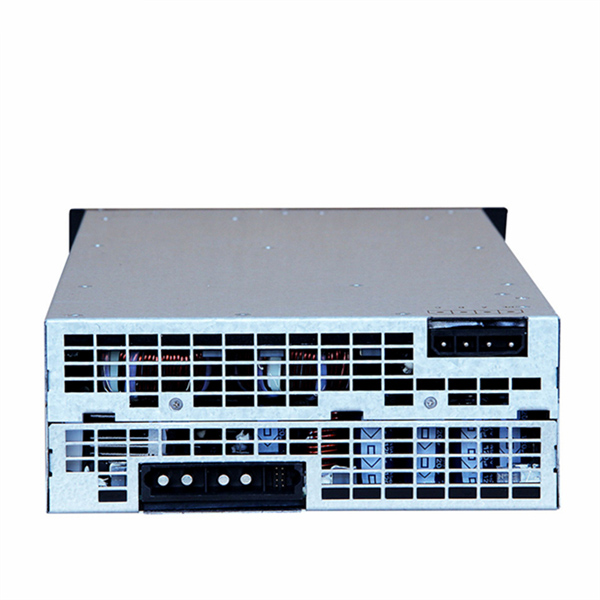

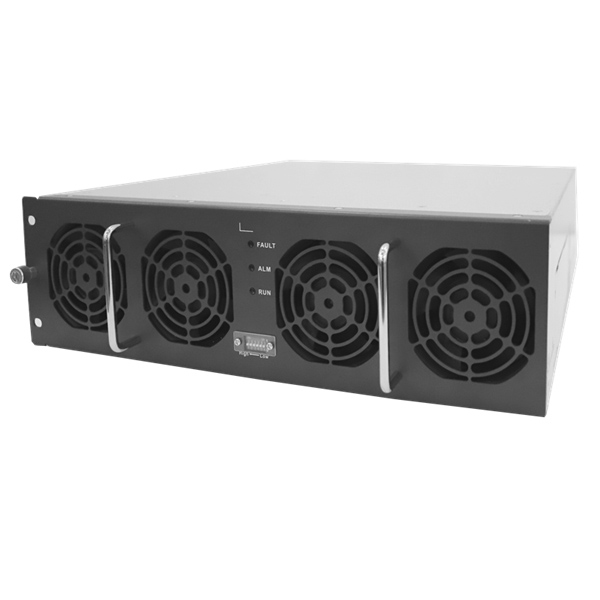

30kW 1000V EV Charger Power Module

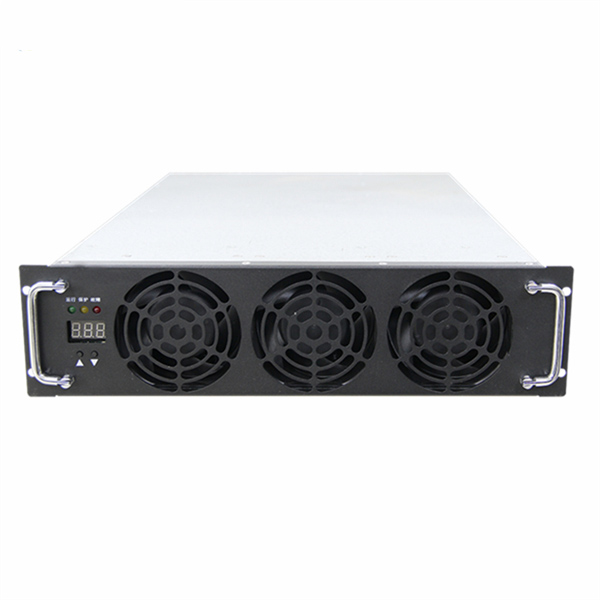

30kW EV Charger Module DC MPPT Power Converter
30KW @1000V Charger Power Module is specially designed for EV DC chargers. It has high efficiency, low fan noise, high power density and high reliability advantage. 3 phase 4 wire AC input, DC output voltage range is from 150 to 1000VDC with 30kW output power, EMC/EMI satisfy TUV CE certicification with class B level, and safety satisfy both TUV UL and CE certicification.
Low Standby power consumption <10W
High full load efficiency ≥95.5%
3 phase active power factor correction technology,reduce the harmonic interference to the grid.
A patent intelligent discharge circuit inside, improve the system reliability and simplify the system design
Dual DSP design, achieve the full digital control, fewer components means higher reliability
Wide operating temperature range -40℃ to +75℃
Compliant with CE Safety standard EN61851-1, EN61851-23 , EN61851-23 and EN61851-21-1EMC Standard
Product Introduction
30KW High Power Charging Module is specially designed for EV DC chargers . It has high efficiency, low fan noise , high power density and high reliability advantage . 3 phase 4 wire AC input, DC output voltage range is from 150 to 1000VDC with 30kw output power, EMC / EMI satisfy TUV CE certification with class B level , and safety satisfy both TUV UL and CE certification.
Main feature
■ Inside high frequency transformer isolatioa
■ Full hot plug desiga
■ TUV CE / UL KC Certification , EMC class B level
■ Air duct isolation design for high protection and high reliability for harsh environment
■ Wide output voltage range , 150-1000VDC , suitable for a wide range of Evs
■ Constant current for higher output power at low output voltage
■ Super denoise mode can get less 55 dB fan audio noise
■ An internal patented intelligent discharge circuit automatically discharges residual charge , simplifying system designs
■ Low standby power consumption with 12W. Super standy power consumption with 2w.
■ 3 phase without neutral eliminates the risk of high neutral currents
■ 3 phase active power factor correction technology reduces the harmonic interference to the grid
■ Dual DSP design , provides the full digital control less components means higher reliability
■ Wide input voltage range . 260-530vac,allows operation in most poor grid conditions
■ Wide operating temperature range . -40C– + 75C
Application

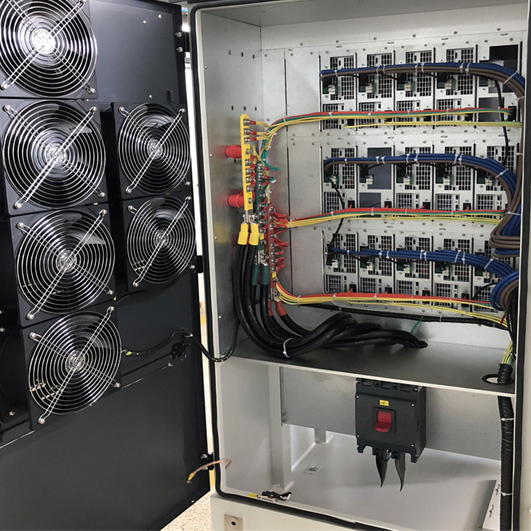

DC charger for EV with modular design , easily maintenance , cost efficiency , high power density and high quality
