Hengyi - 10/16A Electric Car Adjustable Portable EVSE level 2 EV Charger Type 2 with Schuko 16A

Various sizes of 10/16A Electric Car Adjustable Portable EVSE level 2 EV Charger Type 2 with Schuko are available for clients. The team uses the most advanced production equipment and independent research and development technology to minimize 10/16A Electric Car Adjustable Portable EVSE level 2 EV Charger Type 2 with Schuko development cycle and ensure the high quality and strong reliability of the product. Get in touch with us - call, fill in our online form or connect via live chat, we are always happy to help.

Product Description

Product functions

Adaptation to vehicles

Our products can be adapted to all HEV & PHEV vehicles on the market that use the Euro Type 2 charging interface.

Current regulation

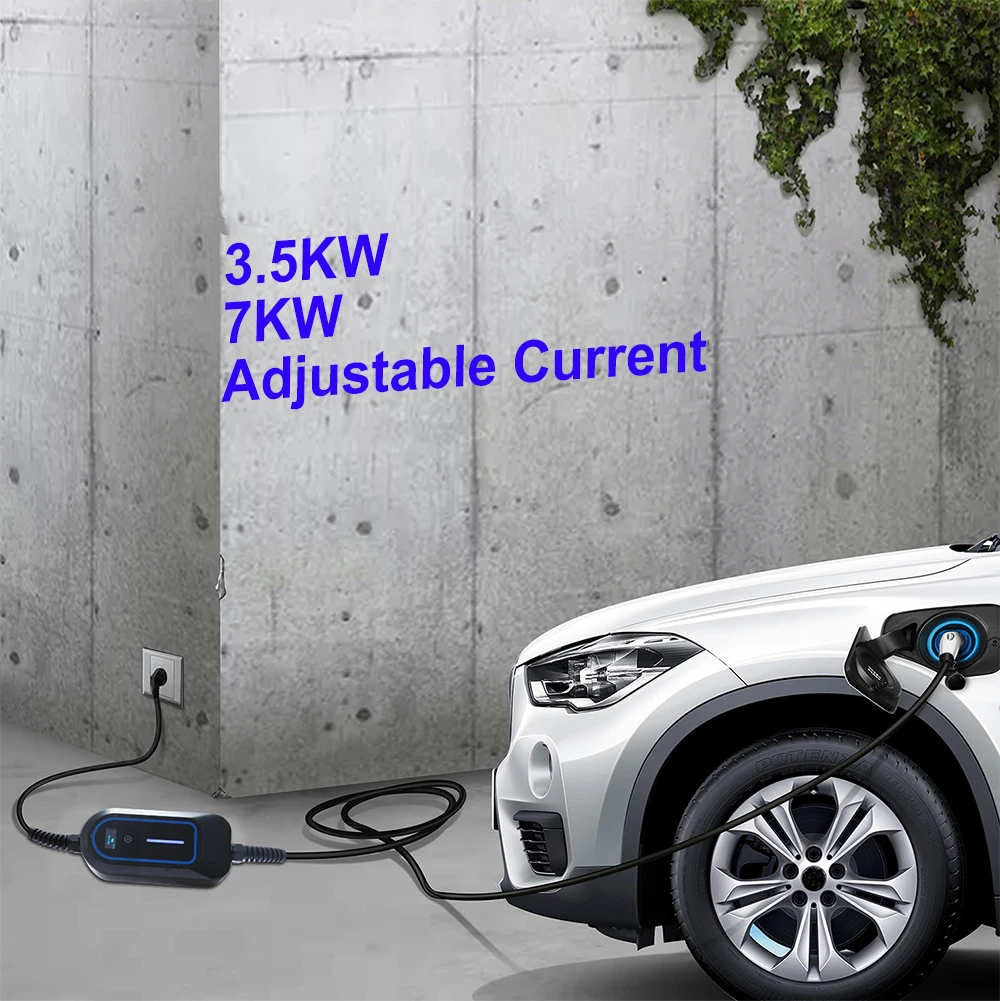

Our EV charger supports the adjustment of the charging current, which can be switched between 8A/10A/13A/16(3.5KW) , 8A/10A/13A/16/25A/32A(7KW). This allows you to adapt to different charging scenarios.

Screen display

The Portable ev charger station can display the charging voltage, charging current, charging power, charging time,internal temperature, regulated power rating and other parameters in real time while charging.

Parameter	Product model	SEVK1227AC01US		HY122007AC1-01-P/W-S
Structure	Product Series	Pony
		Size(mm)	220(L)*95(W)*65(H)mm
		Charging cable	5m Standard Support Custom Length
		Weight	3.5kg(with plug)
Electrical Specifications	Input voltage	AC230V±15%
		Frequency rating	45~65HZ
		Power rating	3.5 KW		7.0KW
		Measuring accuracy	1.0 grade
		Output voltage	AC230V±15%
		Current rating	8A , 10A , 13A , 16A , 25A , 32A Adjustable		32A
Function	LED	Y		Y
		Display	Y		Y
Operating conditions	Working temperature	-40~+65℃
		Relative humidity permission	5%~95%(non-condensation)
		Maximum altitude permission	≤3000m
		IP grade	IP67
		Cooling way	Natural cooling
		Applicable ambient	Indoor/outdoor
		ECT	UV resistance
		MTBF	≥100000H

MULTIPLE PROTECTIONS

Over-voltage protection

Undervoltage protection

Overload protection

Short circuit protection

Grounding protection

Type A earth leakage protection

Lightning surge protection

Reverse connection protection

Adhesion check

Over temperature protection

10 protection measures in total

Customized services

Our services include not only logo printing and customised power plugs, but also the ability to change the colour of the productcasing to suit your logo and brand positioning. Please click Send Inquiry or Contact Us for more details

Company Profile

Hengyi Mechanical&Electrical Engineering is an enterprise specializing in Research & Development of Electric Vehicle Charging products. The company has a strong R&D team and the team director conducted a visiting scholar study at the University of Michigan Dearborn from 2011 to 2012. And the company also has a complete production supporting system integrating mold design, manufacturing and injection molding. We can provide customized services to meet different needs from customers, in addition to our regular standard products. We constantly strive to provide each customer with better products along with customized services. We are committed to become the most professional and efficient manufacturer in the field of EV charging. Now our products adapt to vast majority of vehical models around the world and we will continously update to provide with safe and efficient EV charging products.

FAQ

How AC ev charger works?
The output of the AC charging post is AC, which requires the OBC to rectify the voltage itself, and is limited by the power of the OBC, which is generally small, with 3.3 and 7kw being the majority.

What ev charger do I need?

It is best to choose according to the OBC of your vehicle, e.g. if the OBC of your vehicle is 3.3KW then you can only charge your vehicle at 3.3KW even if you buy 7KW or 22KW

How to use ev charger?

You need to connect the ev charger to the power supply and then insert the charging plug into your car. If you have selected the RFID card, it will only start charging after you have swiped the RFID card. app version you can control the start or stop of charging on your mobile phone, and you can also make appointments to charge at certain times.

What's the MOQ?
If you are ordering just one product, we can also customise the logo or change the colour of the panel for you, but these customisations are available at an additional cost. Please contact us for more information

Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

What is your terms of delivery?
A:EXW, FOB, CIF.

What is your terms of payment?
We accept all methods of payment: paypal, T/T, credit card, assurance, West Union... Please contact us for more details.
