Hengyi - ODE OEM 3 phases Type 2 wall-mounted charger station of electricity for electric cars 7KW with screen

Shanghai Hengyi Mechanical and Electrical Engineering Co., Ltd. still remembered the time when we successfully developed the new product - ODE OEM 3 phases Type 2 wall-mounted charger station of electricity for electric cars. The product is absolutely new and has something different in it. The Wall-mounted Charging Stations product will supply to all over the world, such as Europe, America, Australia,Uganda , Oman ,Sri Lanka , Surabaya . In the future, Shanghai Hengyi Mechanical and Electrical Engineering Co., Ltd. will continue to attach importance to the cultivation of talents, continuously improve the staff's business level and professional skills, strengthen technological innovation, and continuously enhance the comprehensive competitiveness of the company, in order to achieve'building a century-old evergreen enterprise and creating a well-known international brand' Work hard for this grand goal.

Product Description

Parameter	Product model	Dark house Ⅰ  Series		HY122007AC1-01-P/W-S
Structure	Size(mm)	350(H)*240(W)*95(D)mm
		Installation	Wall-mounted Type / Floor-standing Type Installation

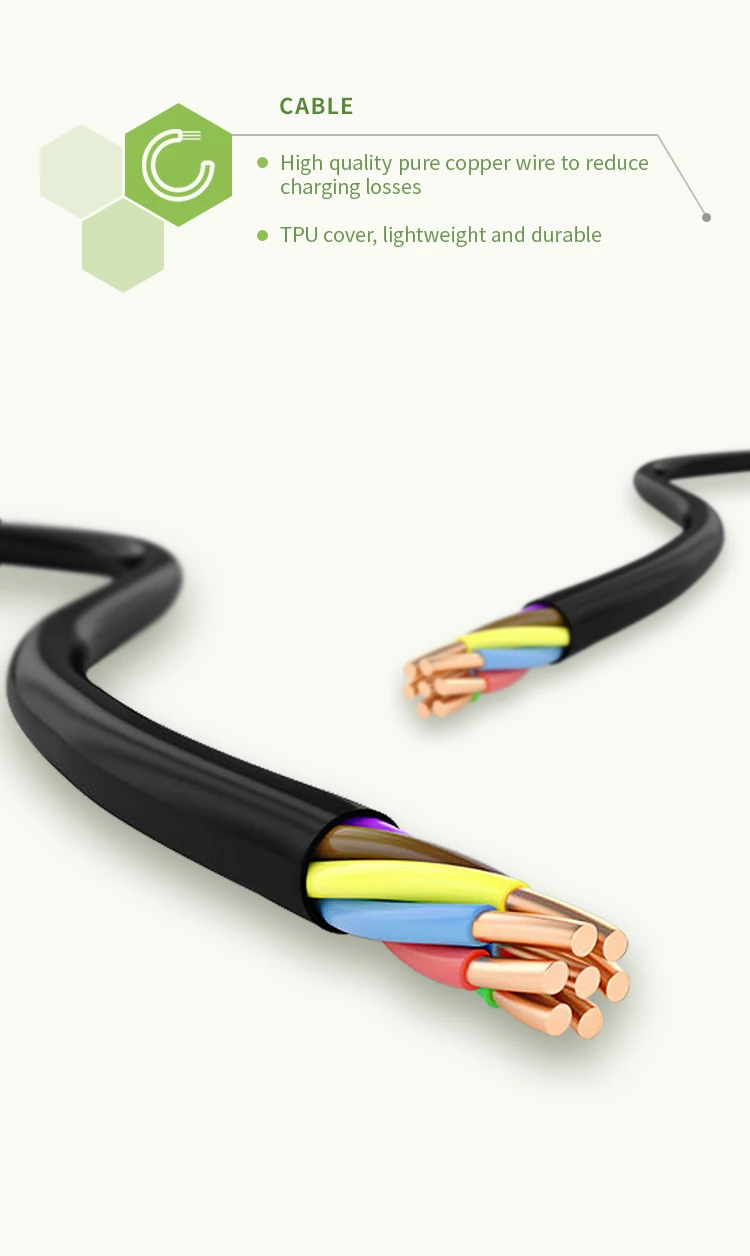

		Charging cable	5M(16.4FT) standard, 7.5m / 10m or other size customizable
		Weight	8.0kg (Including charging gun)
Electrical Specifications	Input voltage	AC220V±20% / AC380V±10%
		Frequency rating	45~65HZ
		Power rating	7KW /11KW /22KW Optional		7.0KW
		Measuring accuracy	1.0 grade
		Output voltage	7KW：AC 220V±20%     11/22KW ：AC 380V±10%
		Output current	7KW:32A   11KW:3*16A   22KW:3*32A		32A
		Measurement accuracy	OBM 1.0		3W
Function	Indicator light	Y		Y
		4.3 inch display screen	Optional		Y
		Communication interface	WIFI/4G/OCPP1.6/LAN Optional		Y
Operating conditions	Working temperature	-40~+65℃
		Relative humidity permission	5%~95%(non-condensation)
		Maximum altitude permission	≤3000m
		IP grade	≥IP55
		Cooling way	Natural cooling
		Applicable ambient	Indoor/outdoor
		ECT	UV resistance
		MTBF	≥100000H

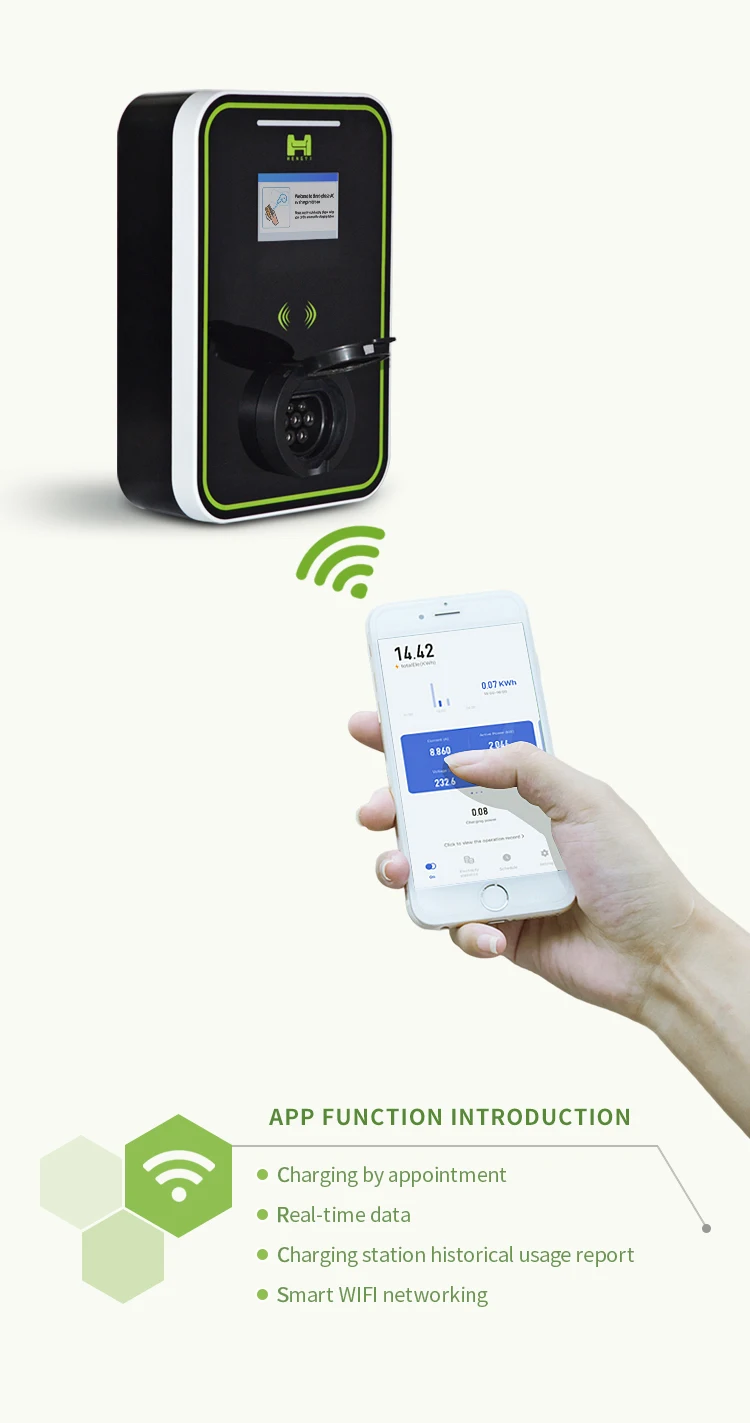

APP Functions

Charging by appointment Charge late at night by appointment, low-carbon, eco-friendly, lower electricity bills

Real-time data Real-time display of current charging voltage, current and power Accurate metering of the charge pile's electricity consumption, so that every dollar of electricity used is clearly visible.

Charging station historical usage report Daily and monthly charging status at a glance

Smart WIFI networking OTA upgrades; improved troubleshooting through remote diagnostics

Power adjustment (to be updated soon) Customised charging power, adjustable up to 1.8KW-22KW.

Company Profile

Hengyi Mechanical&Electrical Engineering is an enterprise specializing in Research & Development of Electric Vehicle Charging products. The company has a strong R&D team and the team director conducted a visiting scholar study at the University of Michigan Dearborn from 2011 to 2012. And the company also has a complete production supporting system integrating mold design, manufacturing and injection molding. We can provide customized services to meet different needs from customers, in addition to our regular standard products. We constantly strive to provide each customer with better products along with customized services. We are committed to become the most professional and efficient manufacturer in the field of EV charging. Now our products adapt to vast majority of vehical models around the world and we will continously update to provide with safe and efficient EV charging products.

FAQ

How AC ev charger works?
The output of the AC charging post is AC, which requires the OBC to rectify the voltage itself, and is limited by the power of the OBC, which is generally small, with 3.3 and 7kw being the majority.

What ev charger do I need?

It is best to choose according to the OBC of your vehicle, e.g. if the OBC of your vehicle is 3.3KW then you can only charge your vehicle at 3.3KW even if you buy 7KW or 22KW

How to use ev charger?

You need to connect the ev charger to the power supply and then insert the charging plug into your car. If you have selected the RFID card, it will only start charging after you have swiped the RFID card. app version you can control the start or stop of charging on your mobile phone, and you can also make appointments to charge at certain times.

what's the MOQ?
If you are ordering just one product, we can also customise the logo or change the colour of the panel for you, but these customisations are available at an additional cost. Please contact us for more information

Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

What is your terms of delivery?
A:EXW, FOB, CIF.

What is your terms of payment?
We accept all methods of payment: paypal, T/T, credit card, assurance, West Union... Please contact us for more details.
