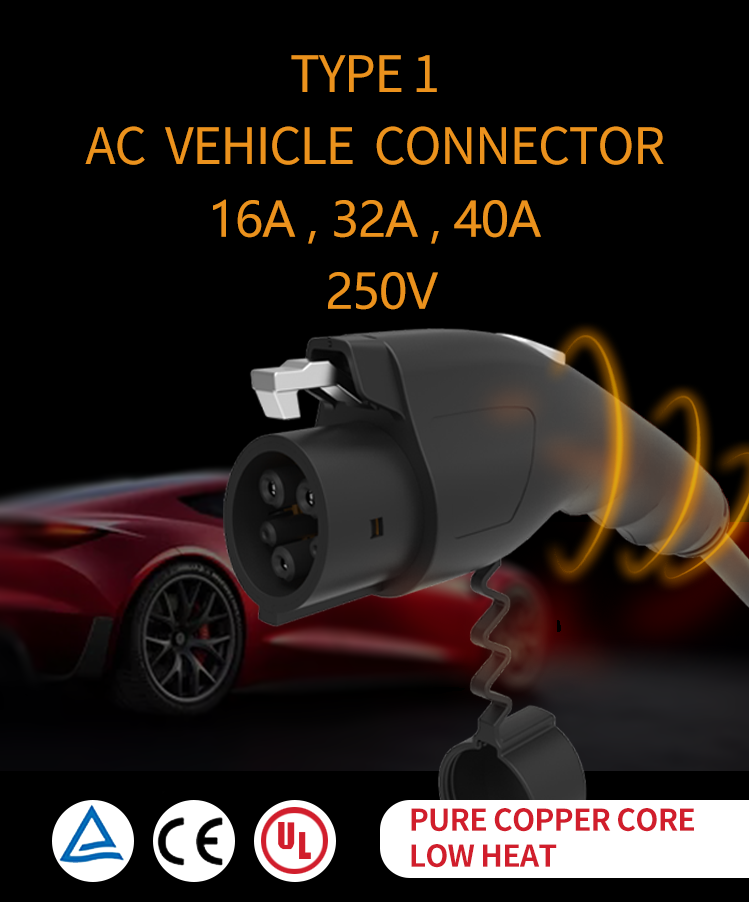

With our fully equipped machines, we can produce Evse SAE J1772 Type 1 ev charging cable support charging mode 3 to your exact specifications. The quality of the Evse SAE J1772 Type 1 ev charging cable support charging mode 3 is at the leading level in the industry and is inseparable from the hard work and innovation of outstanding technical personnel. Driven by the corporate vision of 'being the most professional manufacturer and the most reliable exporter in the international market', Shanghai Hengyi Mechanical and Electrical Engineering Co., Ltd. will pay more attention to enhancing R&D strength, continually upgrade technologies, and optimize organization structure. We encourage all the staff to unite together in this process for creating a better future for the company.

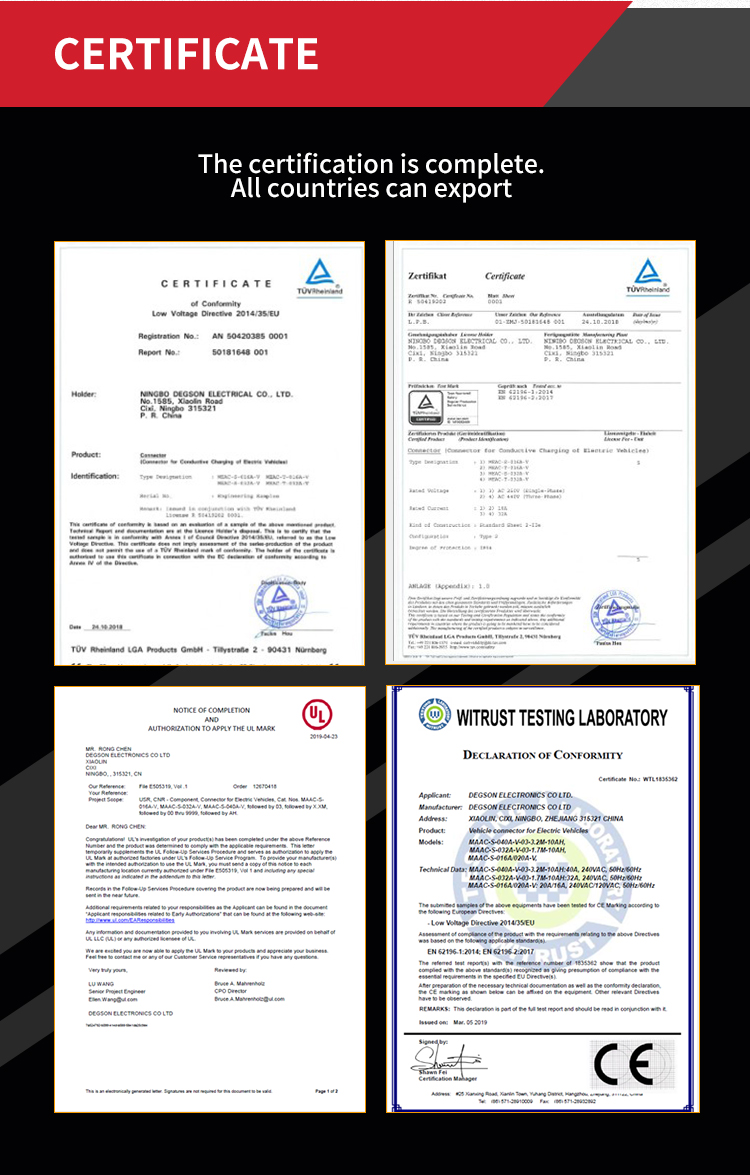

Warranty:12 monthsCertification:CE TUV
Customized:NoCustomized support:cable length
Place of Origin:Shanghai, ChinaBrand Name:HY
Model Number:HY-T1-USType:Electrical Plug
Grounding:Standard GroundingRated Voltage:240V
Rated Current:32AApplication:Vehicle Side
Standard:SAE J1772-2017Charging Mode:2,3

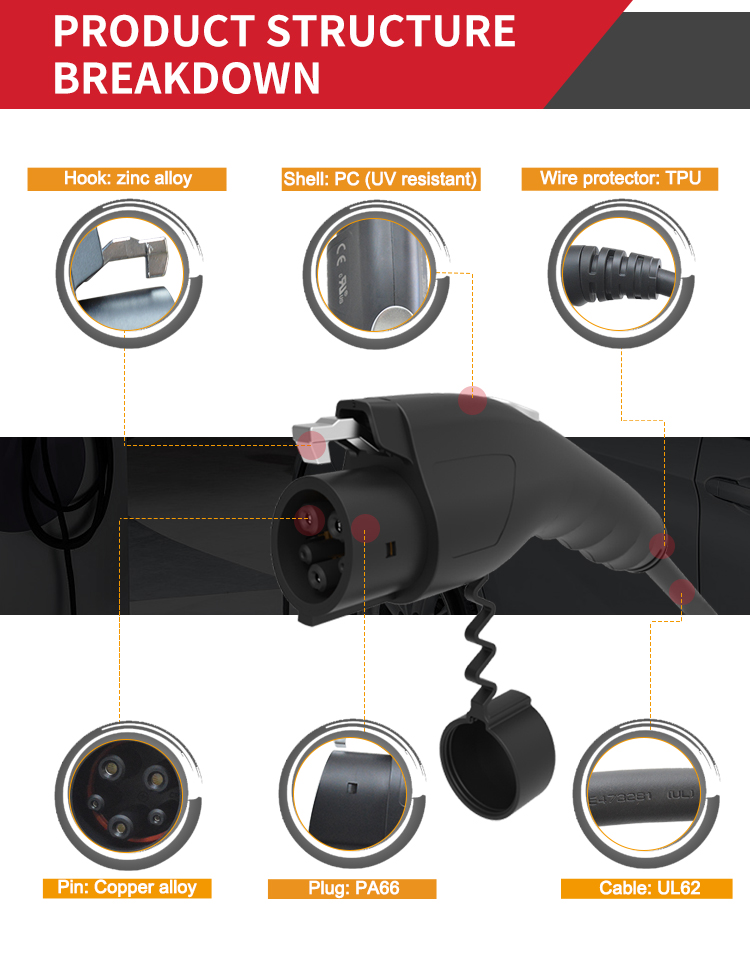

Current Type:ACHousing and Plug material:Reinforced Thermoplastic,UL94V-0
Cap material:Silicone RubberPin Material:Copper Alloy,Ag Plated
Insertion&Pullout Times:10000 times> >10000 timesInsertuin&Pullout Force:<75N
Power Pin Number:3(PE,L,N)

Product Description

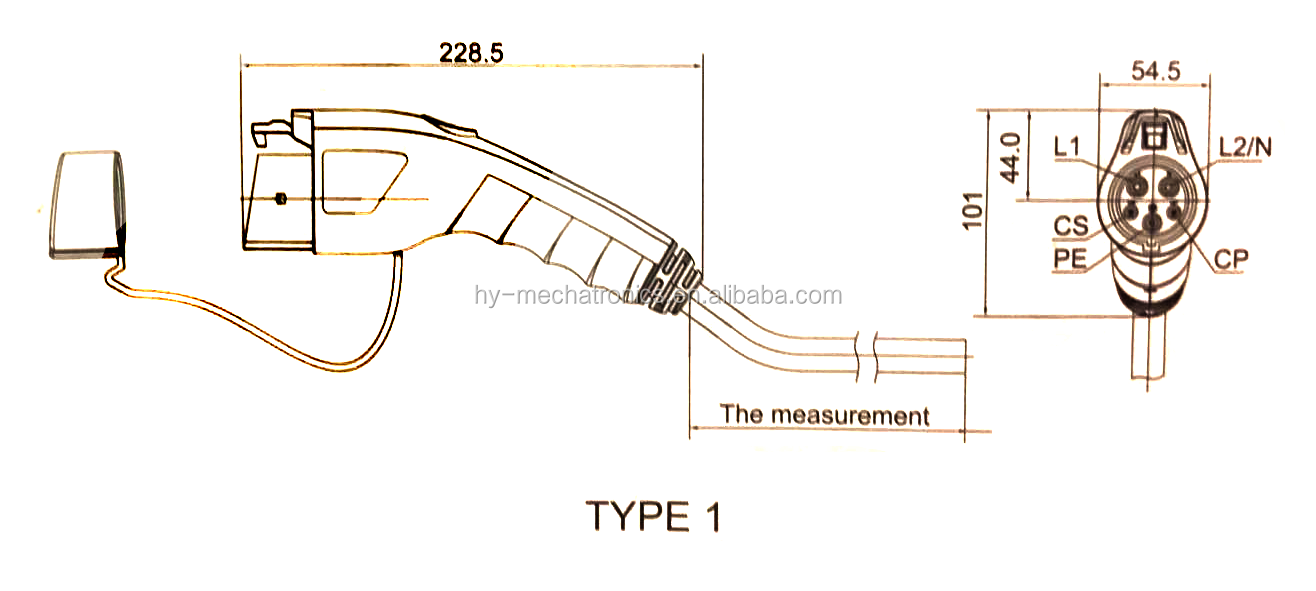

The Product definition
Mechanical behavior

SAE  J1772-2017
Insertion & Pullout Times
> 10000 times

Charging mode
2  ,  3
Insertion & Pullout Force

Connection Manner
B  ,  C
Withstanding Impact Force
Affordable 1 meter height fell or
2 ton car run over pressure

Current type
Electrical characteristics

Housing color
Rated current
16A , 32A , 40A

Cable color
Rated voltage

Ambient conditions
Power Pin Number
3 ( L , N , PE )

Ambient temperature (working)
Signal Contacts Number
2 ( PP , CP )

Ambient temperature (storage)
Signal Pin Current

Ingress Protection
Meets  UL50 Type  3S
Insulation Resistance
≥5MΩ , 500V DC

Cable Configuration
Cable Configuration

16A single phase
UL62  EV 3*12AWG+1*18AWG

32A single phase
UL62 EV 3*10AWG+1*18AWG

40A single phase
UL62 EV 3*8AWG+1*18AWG

Note:  Cable Length according to client request.

This product has the following characteristics

Concise and flowing appearance , comfortable handle , safe and convenient operation EV-charger meets IEC 62196.2-2014 standard and has good interchangeability. EV-charger cabling are used in electric vehicle charging , suitable foe charging in mode 3 . Low temperature rise: the standard requirement is less than 50K, our company tests 32A (6 square line, 19.8K) Stable wiring structure: After 20,000 bending tests, the cable wear marks are less than 1.2mm; Tensile resistance: 32A charging gun cable can reach 1200N, and the standard requirement is 500N; Good electrical performance: Insulation resistance can reach more than 1000MΩ, standard requirements are greater than 5MΩ.

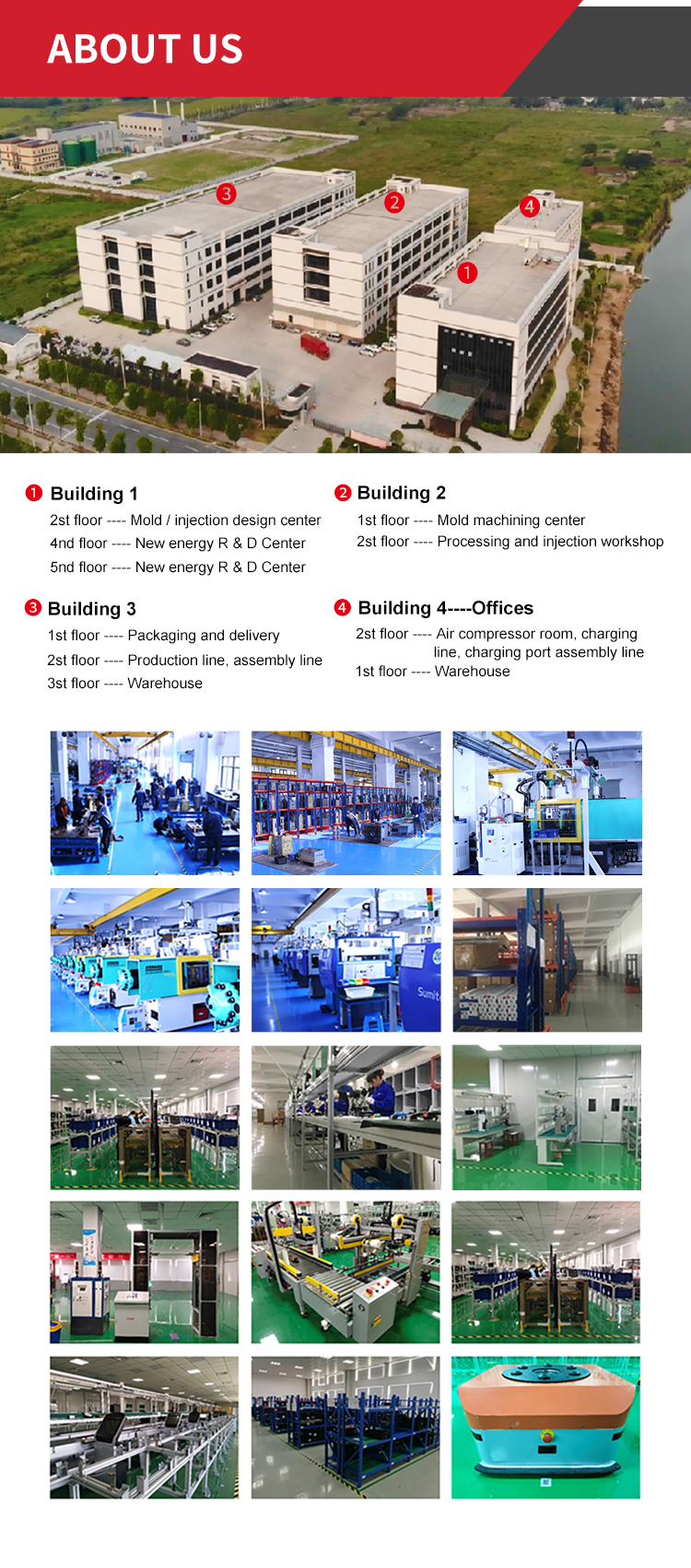

Hengyi Mechanical&Electrical Engineering is an enterprise specializing in Research & Development of Electric Vehicle Charging products. The company has a strong R&D team and the team director conducted a visiting scholar study at the University of Michigan Dearborn from 2011 to 2012. And the company also has a complete production supporting system integrating mold design, manufacturing and injection molding. We can provide customized services to meet different needs from customers, in addition to our regular standard products. We constantly strive to provide each customer with better products along with customized services. We are committed to become the most professional and efficient manufacturer in the field of EV charging. Now our products adapt to vast majority of vehical models around the world and we will continously update to provide with safe and efficient EV charging products.

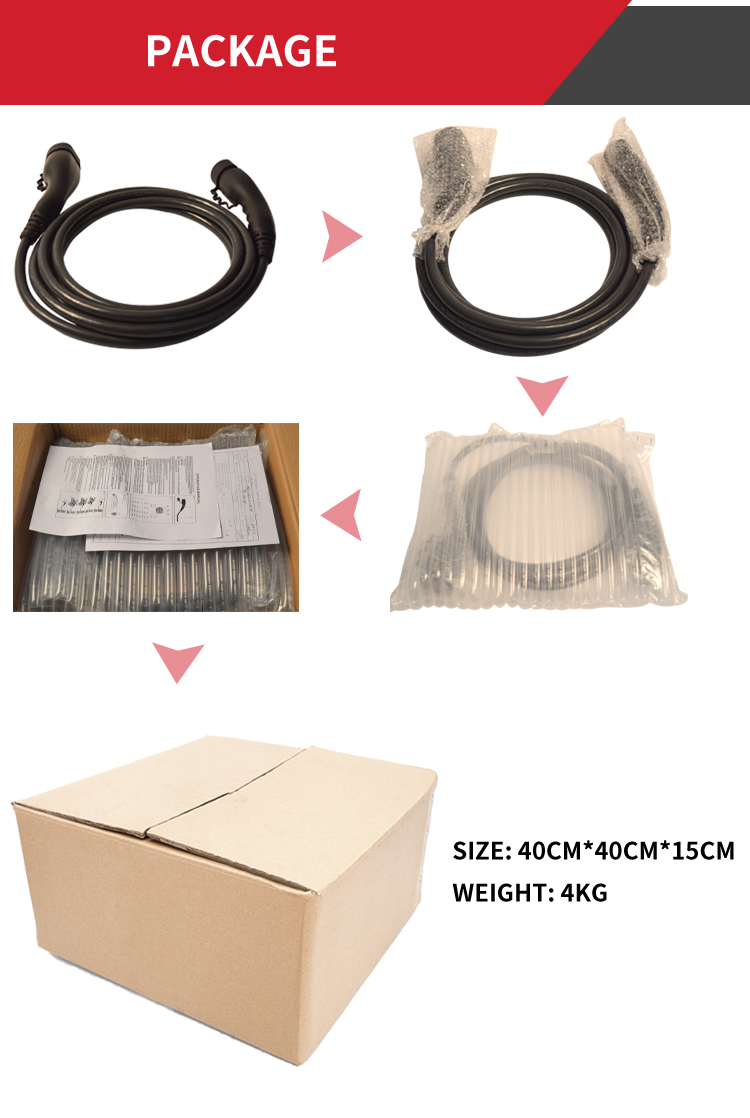

Q1:How do you package it ?
A:We pack in cartons.

Q2:what's the MOQ?
A:For length, color or other special requirements, a minimum of 300 is required. If you do not have these requirements you can buy directly, we will ship within 3-10 days.

Q3:Can you produce according to the samples?
A:Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4:Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.

Q5:What is your terms of delivery?

Q6:What is your terms of payment?
A:We accept all methods of payment: paypal, T/T, credit card, assurance, West Union... Please contact us for more details.
