Always insist on taking the technology as the first productivity to improve our R&D strength, Shanghai Hengyi Mechanical and Electrical Engineering Co., Ltd. has successfully developed Wall-mounted Fast Ev Cars Charging Stations 3.5kw 7kw 11kw 16a 32a Wifi Type 2 Wallbox For Electric Vehicle Ev Charger. Our technical team has many years of experience in this field and can provide professional opinions, suggestions and solutions experience. When customers encounter technical problems, they can provide door-to-door service. For product inquiries, technical support, and other questions, you can reach us in any way stated on our 'Contact Us' page.

Place of Origin:Shanghai, ChinaModel Number:SETX1227AC02EU
Brand Name:HengyiWarranty:1 Year
RCD:Type AWeight:6kg
Installation:Wall-MountedCable length:5M(16.4ft)
Connector:IEC62196-2/SAE J1772Application:AC Home Charging Station
Operating Temperature:-30° ~ +65°Certificate:ROHS CE

Product Description
Factory direct sales of intelligent wall boxes for electric vehicle charging posts. Waterproof level IP55, shell material ABS+PC, anti-UV design. The product is simple to install, punch 4 holes in the wall to fix the wall backplate, insert the other piece into the wall backplate after locking it on the ev charger via the screws in the accessories. Plug and play mode of use, no need to swipe a card, convenient and quick. RFID and APP models are also available if you need them. The APP is available for IOS and Android and can be downloaded and installed from the APP Store and Goolge Play by searching for "EVSmaart Charger" The APP allows you to remotely control the start and stop, adjust the current and view the charging history on your phone. You can also view real-time charging voltage, current, power, charging power and charging mode on your mobile phone. 3 charging modes are available in the APP: plug and charge, card charging and timer charging.
The prices shown on are for the Plug and Play models, please contact us or click on Send Inquiry for the best prices on all models.
Product model
 Dark house   Series

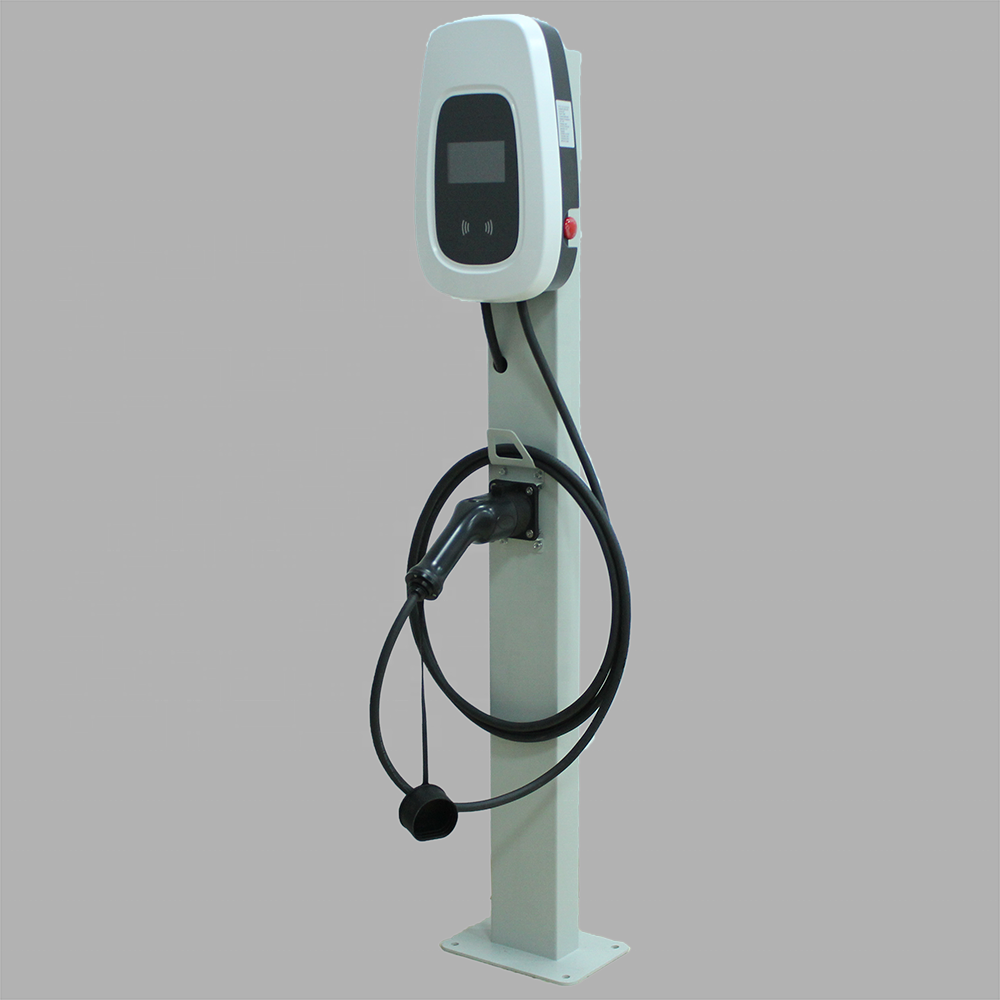

Wall-mounted Type / Floor-standing Type Installation
Charging cable
5M(16.4FT) standard, 7.5m / 10m or other size customizable
6.0kg (Including charging gun)

Electrical Specifications
Input voltage
AC220V±20% / AC380V±10%
Frequency rating
Power rating
7KW /11KW Optional
Measuring accuracy
1.0 grade
Output voltage
7KW:AC 220V±20%     11:AC 380V±10%
Output current
7KW:32A   11KW:3*16A
Measurement accuracy
OBM 1.0

Indicator light
4.3 inch display screen
Communication interface
WIFI/4G/OCPP1.6/LAN Optional

Operating conditions
Working temperature
Relative humidity permission
Maximum altitude permission
IP grade
Cooling way
Natural cooling
Applicable ambient
UV resistance
Company Profile
Hengyi Mechanical&Electrical Engineering is an enterprise specializing in Research & Development of Electric Vehicle Charging products. The company has a strong R&D team and the team director conducted a visiting scholar study at the University of Michigan Dearborn from 2011 to 2012. And the company also has a complete production supporting system integrating mold design, manufacturing and injection molding. We can provide customized services to meet different needs from customers, in addition to our regular standard products. We constantly strive to provide each customer with better products along with customized services. We are committed to become the most professional and efficient manufacturer in the field of EV charging. Now our products adapt to vast majority of vehical models around the world and we will continously update to provide with safe and efficient EV charging products.
How AC ev charger works?
The output of the AC charging post is AC, which requires the OBC to rectify the voltage itself, and is limited by the power of the OBC, which is generally small, with 3.3 and 7kw being the majority.

What ev charger do I need?
It is best to choose according to the OBC of your vehicle, e.g. if the OBC of your vehicle is 3.3KW then you can only charge your vehicle at 3.3KW even if you buy 7KW or 22KW

How to use ev charger?
You need to connect the ev charger to the power supply and then insert the charging plug into your car. If you have selected the RFID card, it will only start charging after you have swiped the RFID card. app version you can control the start or stop of charging on your mobile phone, and you can also make appointments to charge at certain times.

what's the MOQ?
If you are ordering just one product, we can also customise the logo or change the colour of the panel for you, but these customisations are available at an additional cost. Please contact us for more information

Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

What is your terms of delivery?

What is your terms of payment?
We accept all methods of payment: paypal, T/T, credit card, assurance, West Union... Please contact us for more details.
