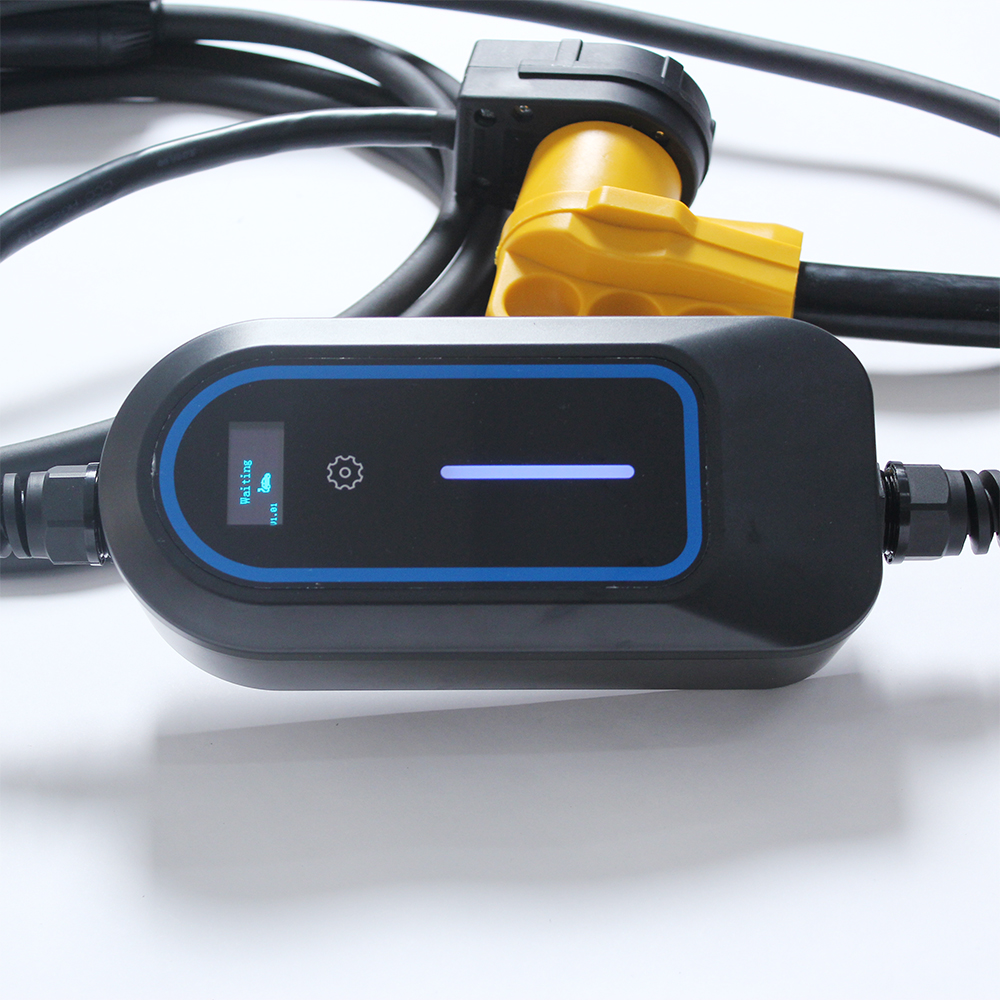

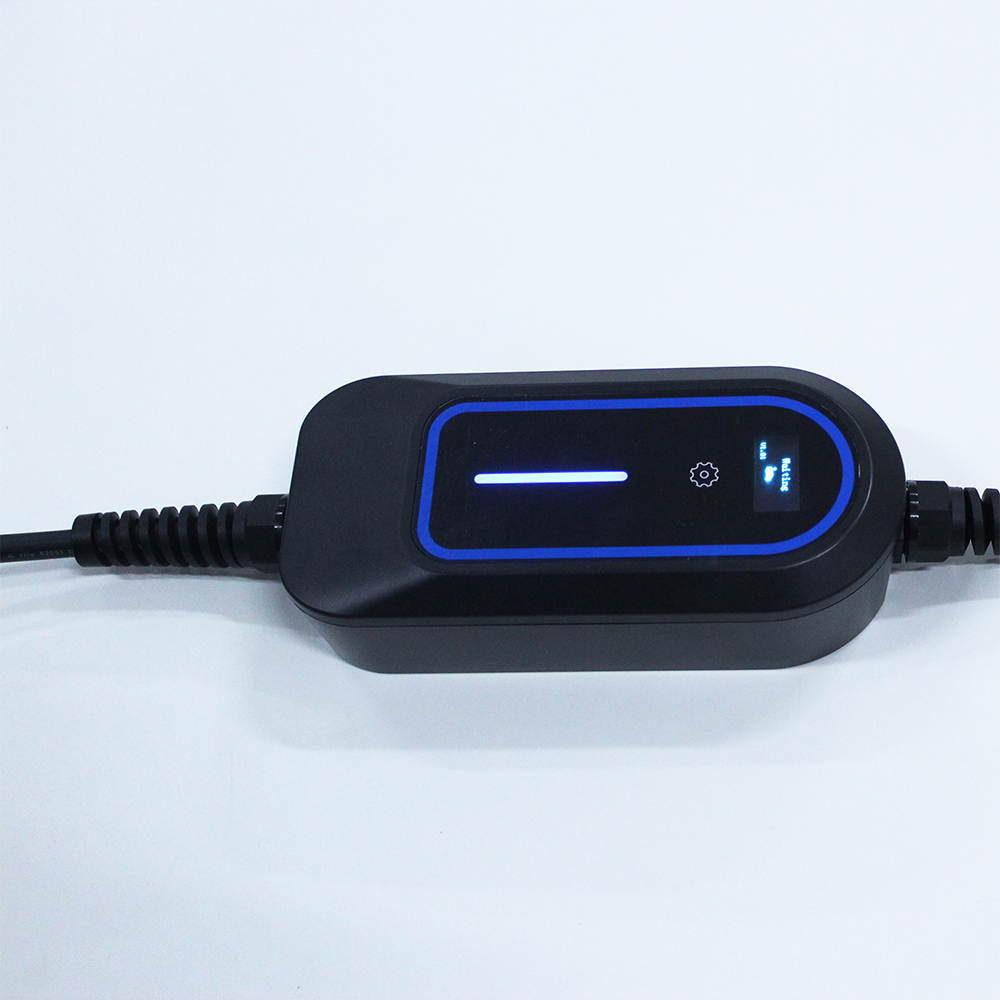

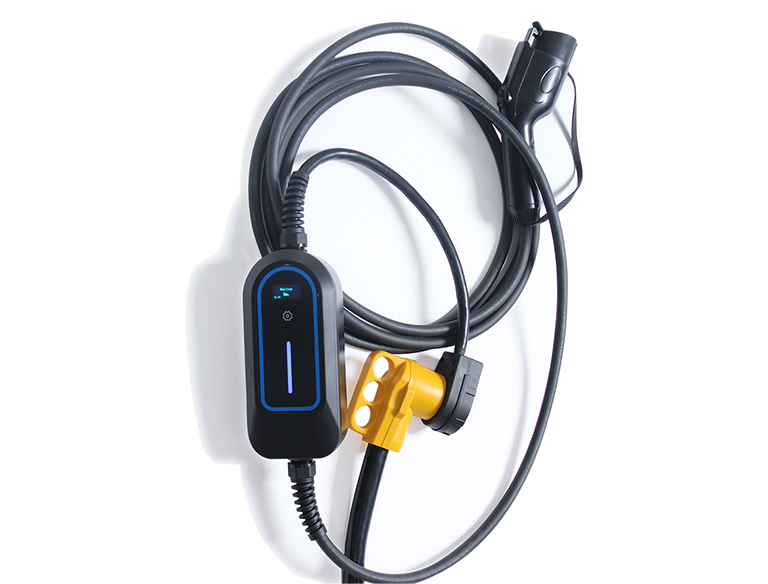

Level 2 fast 7kw car charger is designed according to SAE J1772(2017). Built-in over-temperature protection, adhesion check, reverse connection protection, lightning surge protection, type A leakage protection, grounding protection, short circuit protection, overload protection, under-voltage protection, and over-voltage protection. Ensure the safety of the vehicle while charging. Professional portable 7kw car charger with factory price, welcome to contact us!
Product model : SEVK1227AC02US
Product Series : Pony
Size(mm) : 220(H)*95(W)*65(D)mm
Charging cable : 5m Standard Support Custom Length
Weight : 5kg(with plug)
Input voltage : AC220V±20%
Frequency rating : 45~65HZ
Power rating : 7 KW
Measuring accuracy : 1.0 grade
Output voltage : AC220V±20%
Level 2 fast 7KW portable electric car charger designed according to SAE J1772(2017). built-in over temperature protection, adhesion check, reverse connection protection, lightning surge protection, type A leakage protection, grounding protection, short circuit protection, overload protection, undervoltage protection, over voltage protection. Ensure the safety of the vehicle while charging.
Suitable for all pure electric vehicles and plug-in hybrids that use Type 1 charging port for recharging at a maximum speed of 7KW/h. Please note that whether you can charge your EV at 7KW speed also depends on the OBC on your EV, if the OBC is 3.3KW then even if you buy a 7KW portable ev charger, you can only charge your EV at 3.5KW/H.
The formula for calculating charging time is: Charging time (h) = Battery capacity(kWh)/Charging power(kW)

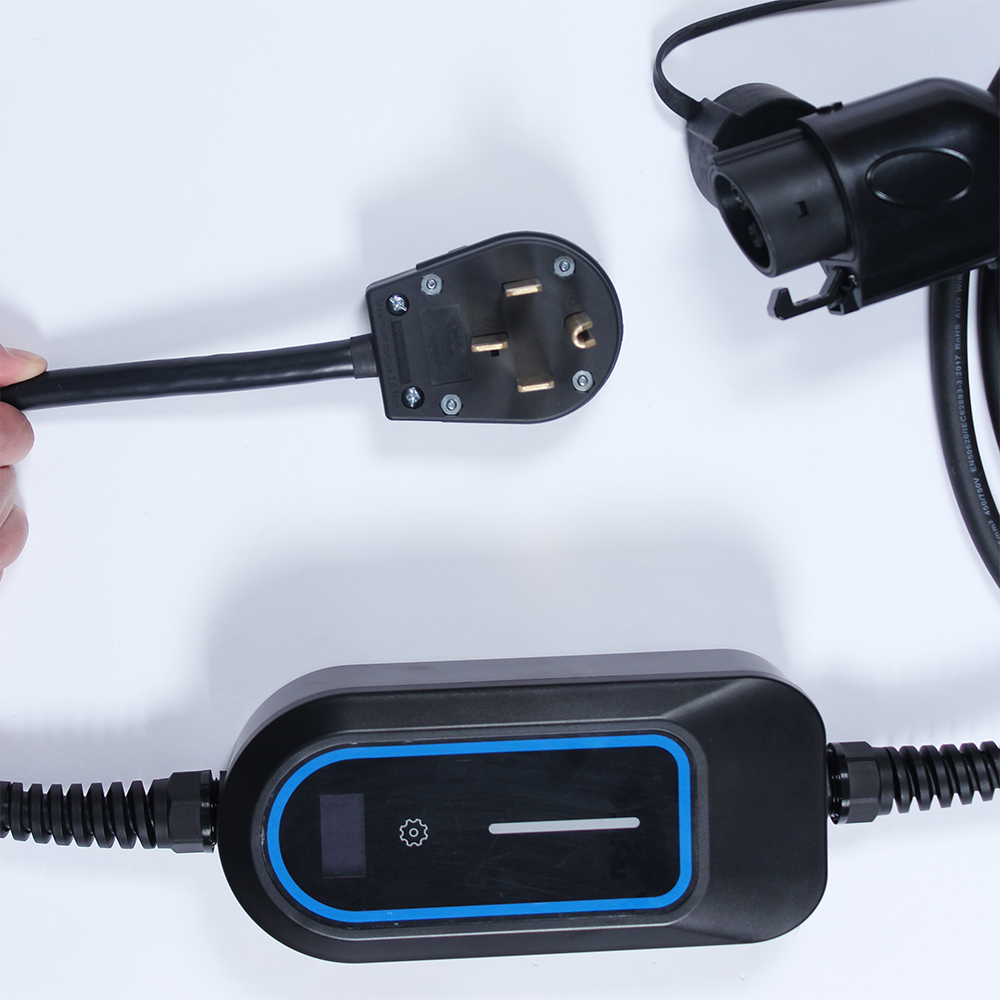

The portable electric car charger is simple to use, all you need to do is plug it into the Nema 14-50 outlet and then plug the charging gun into the charging port device will start charging your EV's battery.
The operating temperature of the product is -40°C - +65°C.
The protection class of the charging box is IP67 and the protection class of the charging gun is IP55 (when plugged in).

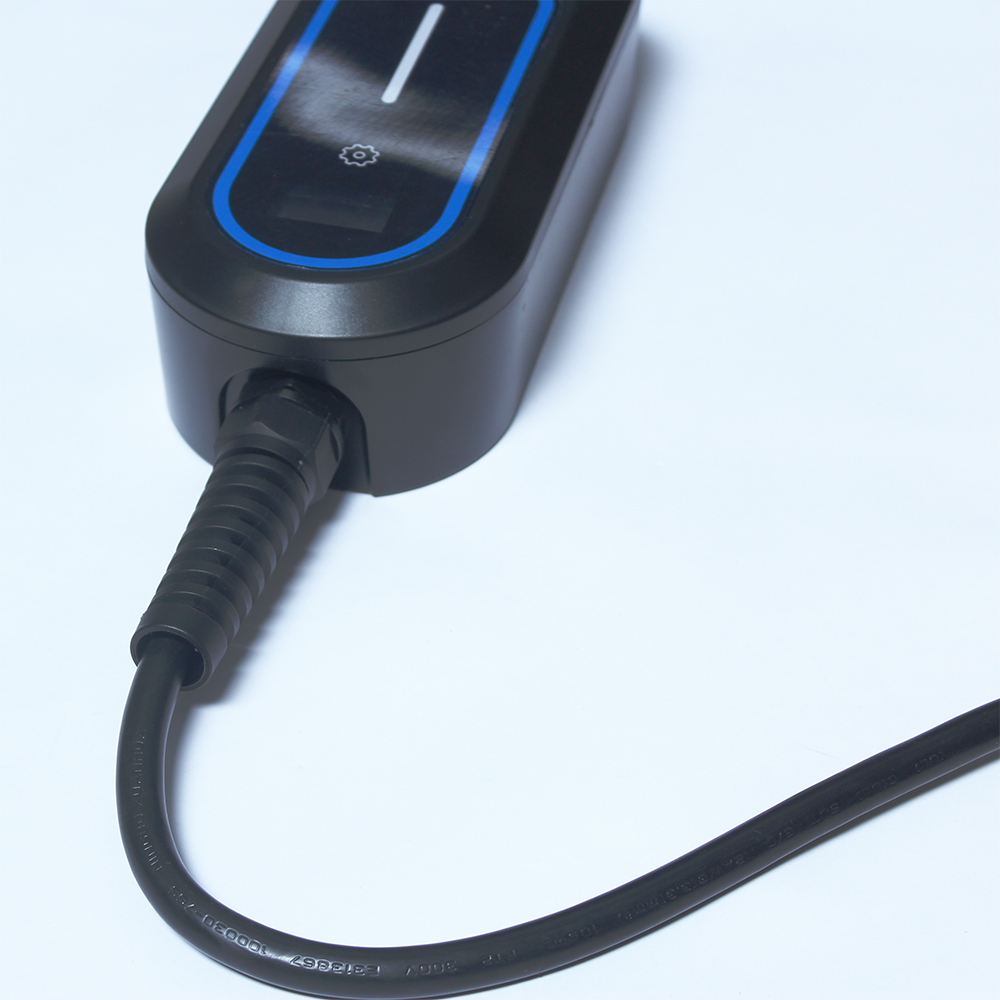

The outer jacket of the charging cable is made of TPU, which is resistant to corrosion, abrasion and low temperature. The cable remains soft and does not become hard when used in cold climates, making it inconvenient to use.
The product manual has LED indicators corresponding to the different states of the fault code, so you can easily troubleshoot the problem to understand the operation of the equipment. After dealing with external faults only need to re-plug the power plug to let the device to complete the restart can continue to charge.
The product provides a 12-month warranty and long-term technical support. Any problem can be solved for you by contacting us.
| Parameter | Product model | SEVK1227AC02US |
| Product Series | Pony | |
| Structure | ||
| Size(mm) | 220(H)*95(W)*65(D)mm | |
| Charging cable | 5m Standard Support Custom Length | |
| Weight | 5kg(with plug) | |
| Input voltage | AC220V±20% | |
| Electrical Specifications | ||
| Frequency rating | 45~65HZ | |
| Power rating | 7 KW | |
| Measuring accuracy | 1.0 grade | |
| Output voltage | AC220V±20% | |
| Current rating | 8A , 10A , 13A , 16A , 25A , 32A Adjustable | |
| LED | Y | |
| Function | ||
| Display | Y | |
| RFID | N | |
| Working temperature | -40~+65℃ | |
| Operating conditions | ||
| Relative humidity permission | 5%~95%(non-condensation) | |
| Maximum altitude permission | ≤3000m | |
| IP grade | IP67 | |
| Cooling way | Natural cooling | |
| Applicable ambient | Indoor/outdoor | |
| ECT | UV resistance | |
| MTBF | ≥100000H |
