This series of portable AC charging pile testers and electric vehicle charger tester is mainly used for online debugging, offline testing, functional verification, and construction after-sales testing of European standard AC charging pile products. The EV car charger tester truly simulates the charging process of a real car. It has the characteristics of being small size and easy to carry while avoiding the disadvantages of inconvenience in testing and use and failure to simulate failure caused by the use of electric vehicles as the detection device.
This series of portable AC electric vehicle charger tester mainly has charging voltage measurement, guide circuit control (controlled by charging switch) and other functions, single three-phase common. By measuring the charging voltage, you can determine whether the charging pile is output as required.
By switching the charging switch, you can determine whether the charging pile is enabling and shuting down the output as required.

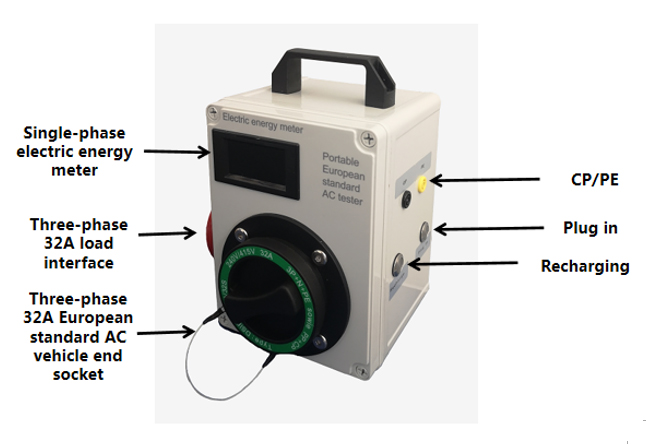

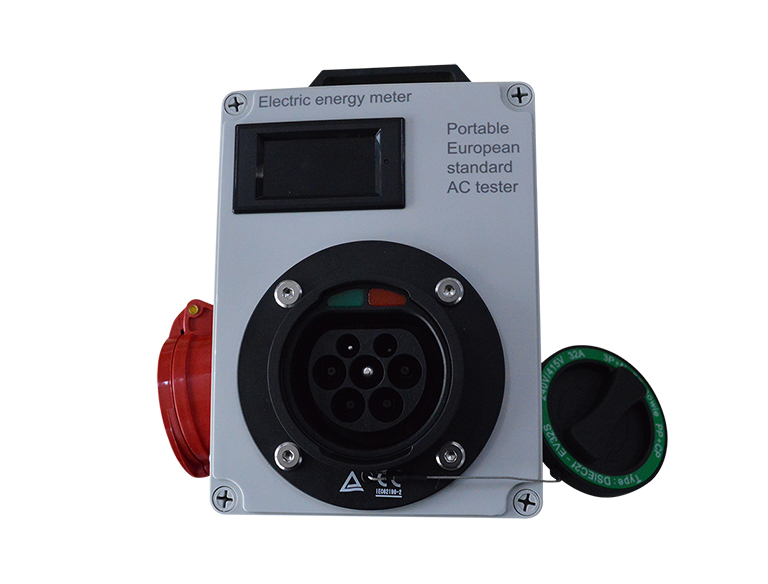

Product specific panel schematic shown in Figure 1, mainly has the European standard AC charging car socket interface, plug gun control switch, charging controlswitch,AC volt meter, load expansion port composition.
