To be the best among global electric vehicle charger manufacturers

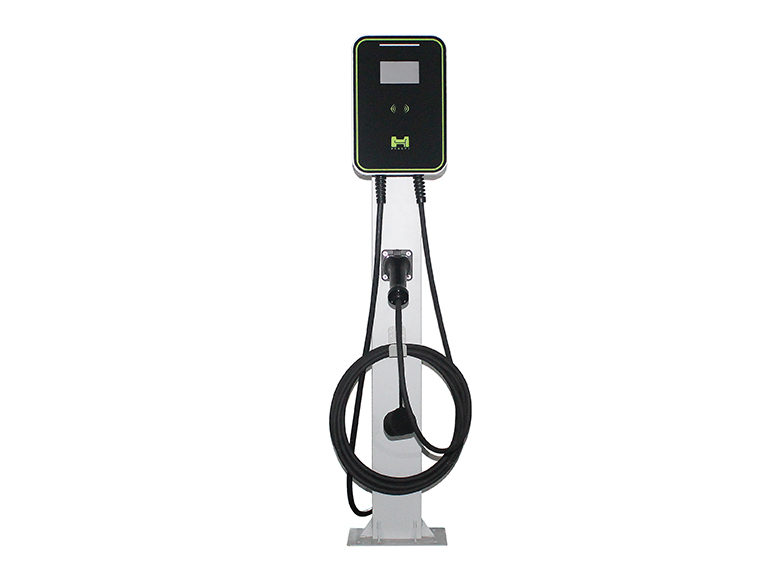

The Dark House l AC series is a cost-effective and highly reliable single-phase AC 11 kw ev charger. It combines an AC charging interface, a human-machine interface, electrical safety design and protection of the charging AC charging interface, a human-machine interface, electrical safety design and protection of the charging function, and offers various charging methods such as card, APP and plug-and-charge.
Size(mm) : 350(H)*240(W)*95(D)mm
Installation : Wall-mounted Type / Floor-standing Type Installation
Charging cable : 5M(16.4FT) standard, 7.5m / 10m or other size customizable
Weight : 8.0kg (Including charging gun)
Input voltage : AC220V±20% / AC380V±10%
Frequency rating : 45~65HZ
Power rating : 7KW /11KW /22KW Optional
The intelligent configuration of the AC 11kw home ev charger follows the principle of modular design. Under the same structure and hardwareration of the AC 11kw home ev charger follows the principle of modular design. Under the same structure and hardware platform, it can be flexibly configured with Bluetooth, WIFI,4G networking, Ethernet and an intelligent interactive screen. The AC pile is highly integrated with human-machine interaction, control, metering and safety time screen.
The AC pile is highly integrated with human-machine interaction, control, metering and safety protection modules, energy-saving and power-saving, with a minimum standby power consumption of 5 W. With special accessories, the charging current of the EV charger can be dynamically adjusted according to the with special accessories, the charging current of the EV charger can be dynamically adjusted according to the household electricity consumption, protecting your household power supply line.
Charging by appointment
Charge late at night by appointment, low-carbon, eco-friendly, lower electricity bills
Real-time data
Real-time display of current charging voltage, current and power Accurate metering of the charge pile's electricity consumption, so that every dollar of electricity used is clearly visible.
Charging station historical usage report
Daily and monthly charging status at a glance
Smart WIFI networking
OTA upgrades; improved troubleshooting through remote diagnostics
Power adjustment
Customised charging power, adjustable up to 1.8KW-22KW.

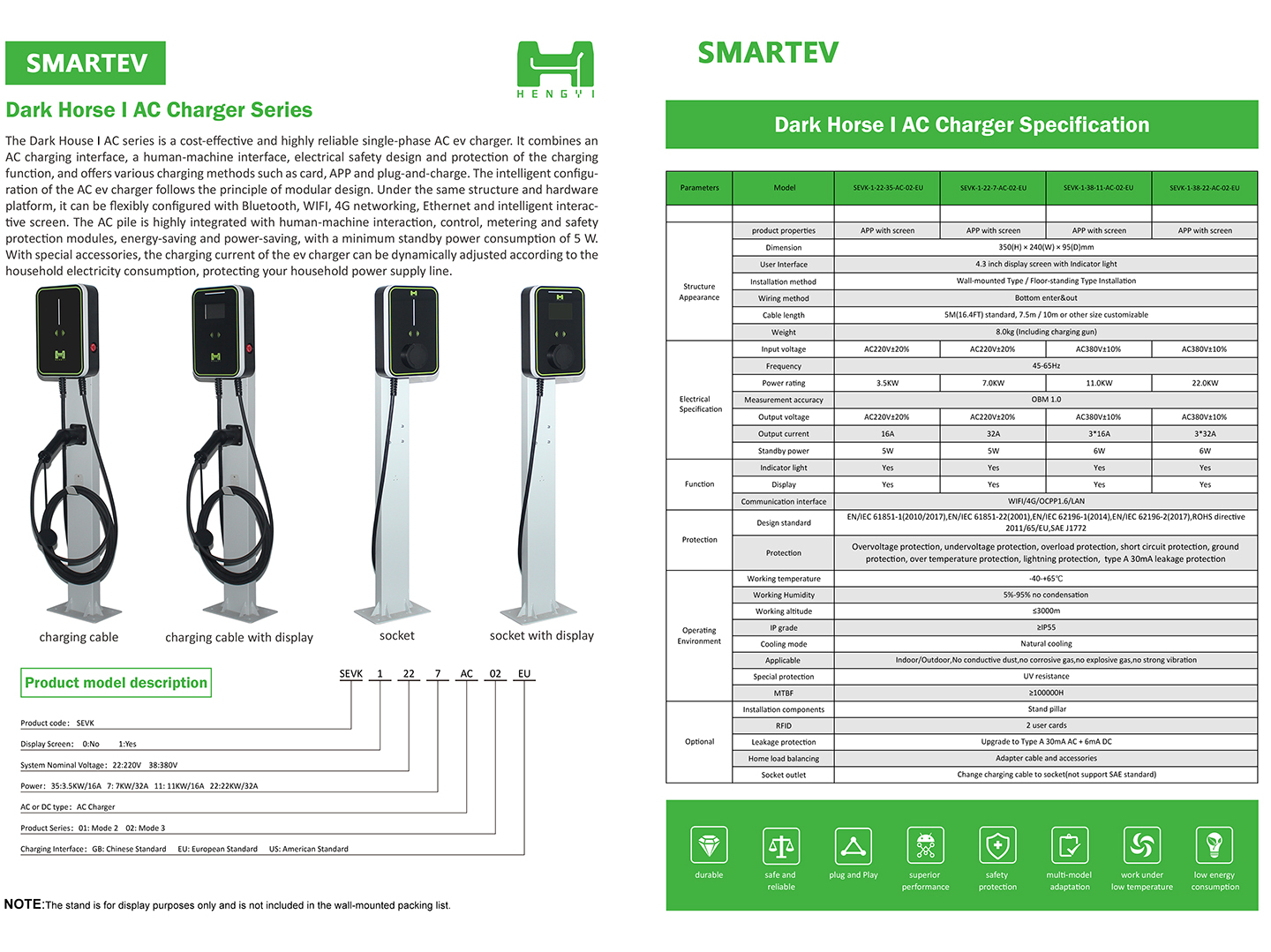

| Parameter | Product model | Dark house Ⅰ Series |
| Size(mm) | 350(H)*240(W)*95(D)mm | |
| Structure | ||
| Installation | Wall-mounted Type / Floor-standing Type Installation | |
| Charging cable | 5M(16.4FT) standard, 7.5m / 10m or other size customizable | |
| Weight | 8.0kg (Including charging gun) | |
| Input voltage | AC220V±20% / AC380V±10% | |
| Electrical Specifications | ||
| Frequency rating | 45~65HZ | |
| Power rating | 7KW /11KW /22KW Optional | |
| Measuring accuracy | 1.0 grade | |
| Output voltage | 7KW：AC 220V±20% 11/22KW ：AC 380V±10% | |
| Output current | 7KW:32A 11KW:3*16A 22KW:3*32A | |
| Measurement accuracy | OBM 1.0 | |
| Indicator light | Y | |
| Function | ||
| 4.3 inch display screen | Optional | |
| Communication interface | WIFI/4G/OCPP1.6/LAN Optional | |
| Working temperature | -40~+65℃ | |
| Operating conditions | ||
| Relative humidity permission | 5%~95%(non-condensation) | |
| Maximum altitude permission | ≤3000m | |
| IP grade | ≥IP55 | |
| Cooling way | Natural cooling | |
| Applicable ambient | Indoor/outdoor | |
| ECT | UV resistance | |
| MTBF | ≥100000H |
