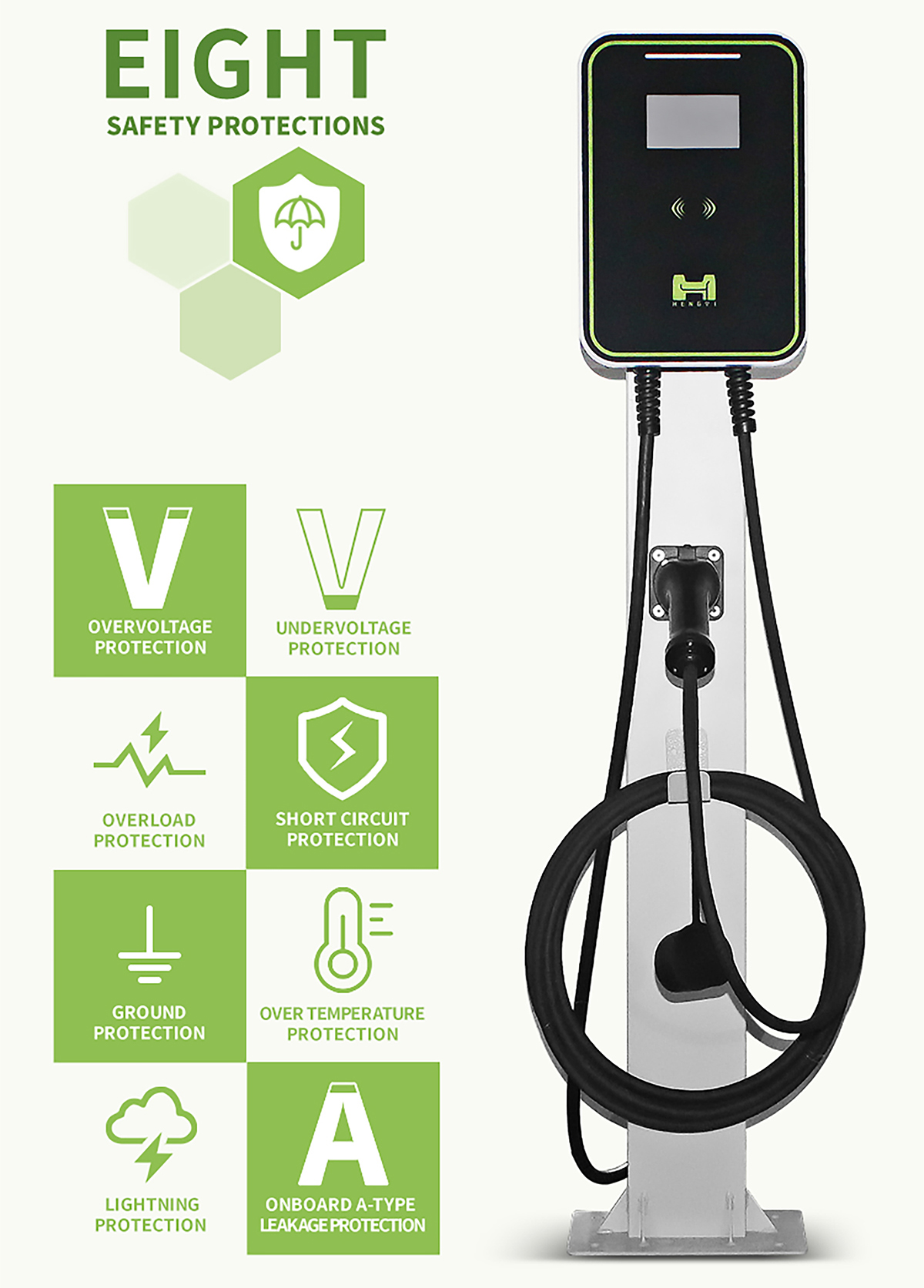

This ev charger can be used for both domestic and commercial purposes. It can be extended with the most basic charging functions such as app, home load balancing, connection to solar power systems, OCPP 1.6 etc. Easy to install and use, the housing is made of high quality ABS+PC injection moulding and has a fire rating of UL94V_0. There are eight built-in protection measures to ensure your safety when charging.
Size(mm) : 350(H)*240(W)*95(D)mm
Installation : Wall-mounted Type / Floor-standing Type Installation
Charging cable : 5M(16.4FT) standard, 7.5m / 10m or other size customizable
Weight : 8.0kg (Including charging gun)
Input voltage : AC220V±20% / AC380V±10%
Frequency rating : 45~65HZ

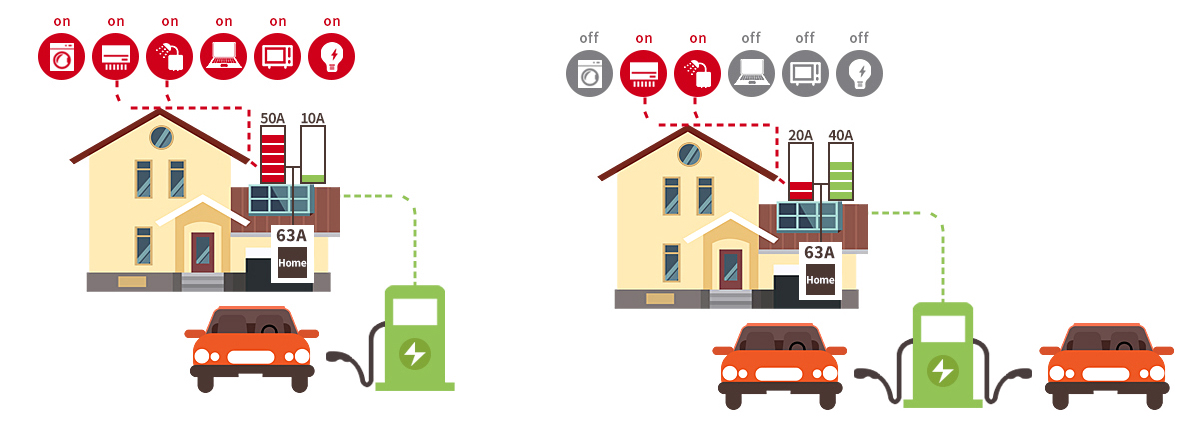

The charging current of the ev charger is automatically reduced when there are a lot of appliances in the house, and the charging post is automatically fully charged when the household appliances are switched off at night.
Charging By Appointment
Charge late at night by appointment, low-carbon, eco-friendly, lower electricity bills
Real-time Data
Real-time display of current charging voltage, current and power
Accurate metering of the charge pile's electricity consumption, so that every dollar of electricity used is clearly visible.
Charging Station Historical Usage Report
Daily and monthly charging status at a glance

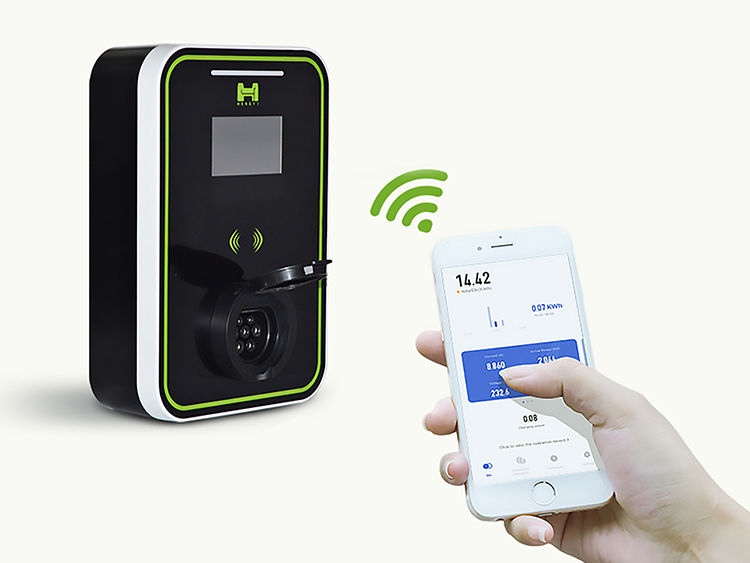

Smart WIFI Networking
OTA upgrades; improved troubleshooting through remote diagnostics
Power Adjustment
Customised charging power, adjustable up to 1.8KW-22KW.

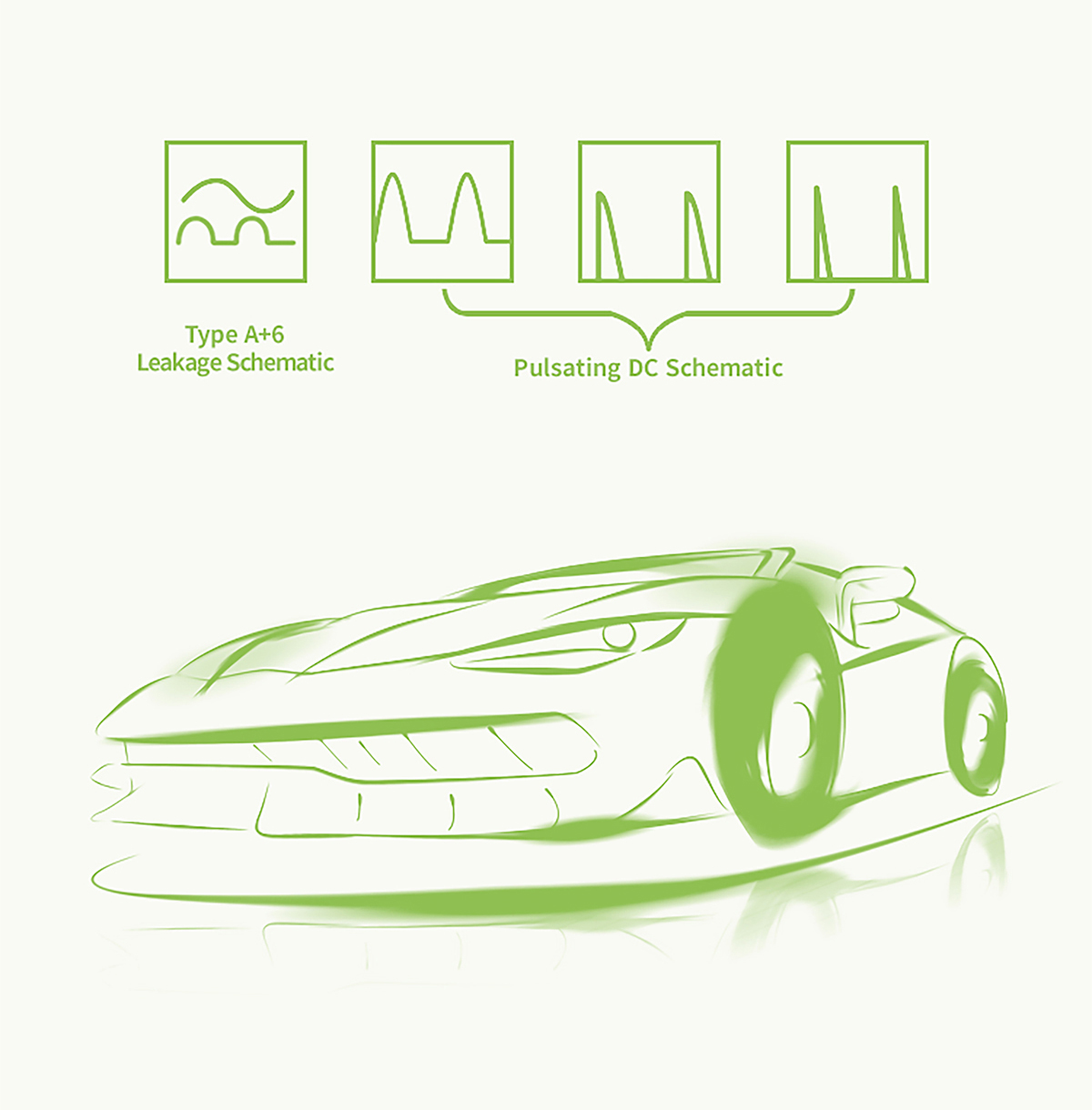

In recent years, accidents such as human electrocution, electrical fires and damage to electrical equipment caused by pulsating DC leakage have occurred.
In circuits with a large number of electronic devices and inverters, AC-type leakage protectors cannot protect the circuit effectively because the leakage signal contains a pulsating DC signal, so it is important to choose a leakage protector for pulsating DC signals.
Parameter | Product model | Dark house Ⅰ Series |
Structure | Size(mm) | 350(H)*240(W)*95(D)mm |
Installation | Wall-mounted Type / Floor-standing Type Installation | |
Charging cable | 5M(16.4FT) standard, 7.5m / 10m or other size customizable | |
Weight | 8.0kg (Including charging gun) | |
Electrical Specifications | Input oltage | AC220±20% / AC380±10% |
Frequency rating | 45~65HZ | |
Power rating | 7KW /11KW /22KW Optional | |
Measuring accuracy | 1.0 grade | |
Output oltage | 7KW: AC 220±20% 11/22KW: AC 380±10% | |
Output current | 7KW: 32A 11KW: 3*16A 22KW: 3*32A | |
Measurement accuracy | OBM 1.0 | |
Function | Indicator light | Y |
4.3 inch display screen | Optional | |
Communication interface | WIFI/4G/OCPP1.6/LAN Optional | |
Operating conditions | Working temperature | -40~+65℃ |
Relatie humidity permission | 5%~95%(non-condensation) | |
Maximum altitude permission | ≤3000m | |
IP grade | ≥IP55 | |
Cooling way | Natural cooling | |
Applicable ambient | Indoor/outdoor | |
ECT | U resistance | |
MTBF | ≥100000H |
