PRODUCTS

Structure Appearance

Dimension

350(H) × 240(W) × 95(D)mm


User Interface

Indicator light

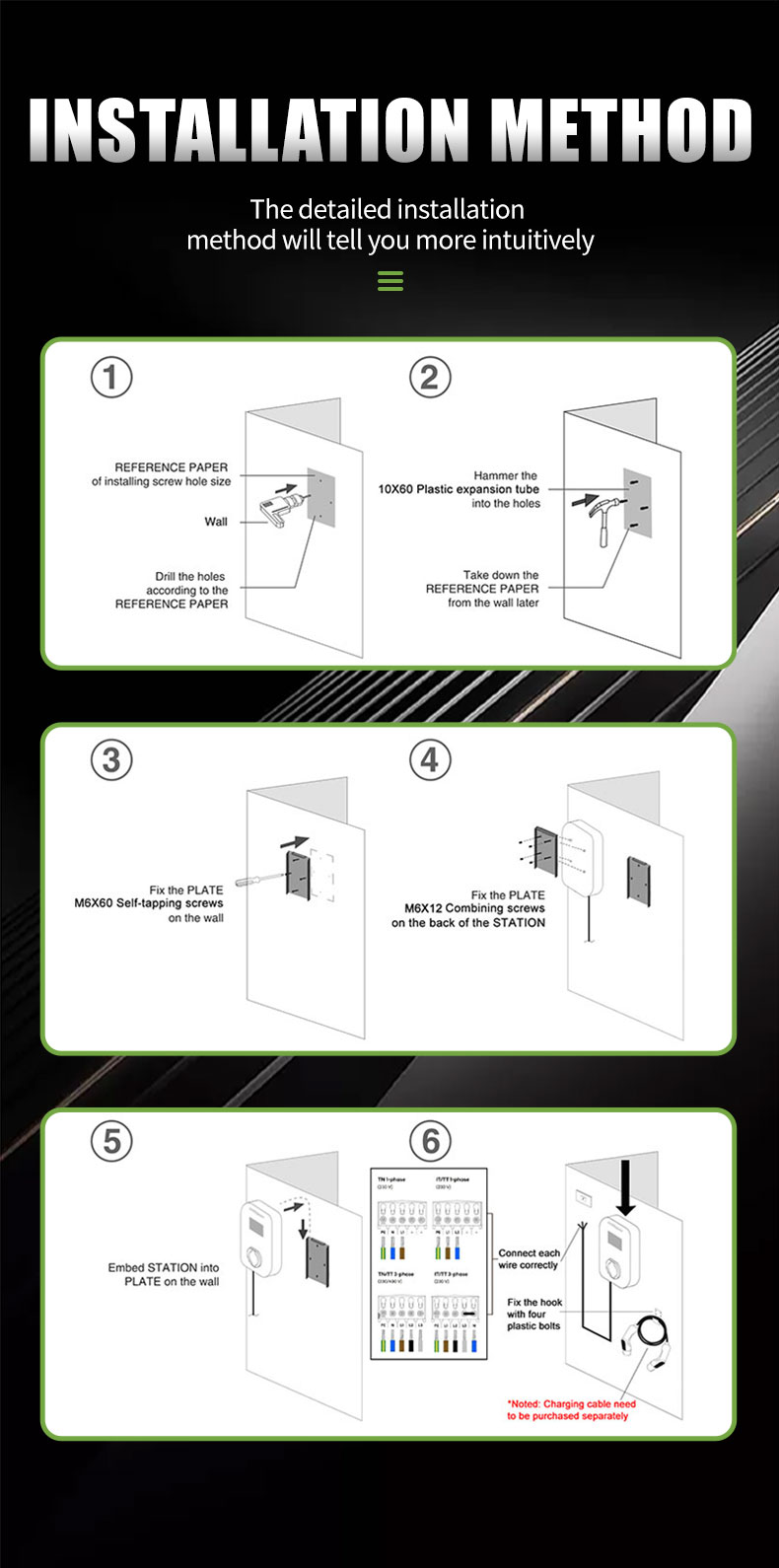

Installation method

Wall-mounted Type/Floor-standing Type Installation


Wiring method

Bottom enter&out


Cable length

5M(16.4FT) standard,7.5m / 10m or other size customizable


Weight

8.0kg (Including charging gun)

Electrical Specification

Input voltage

380V


Frequency

45-65Hz


Power rating

11KW


Measurement accuracy

OBM 1.0


Output voltage

AC380±20%


Output current

16A


Standby power

3KW

Function

Indicator light

YES


Display

NO

Protection

Design standard

GB/T 20234


Protection

Overvoltage protection, undervoltage protection, overload protection, short circuit protection, ground protection, over temperature protection, lightning protection,type A 30mA + 6mA DC leakage protection

Operating Environment

Working temperature

-40-+65℃


Working Humidity

5%-95% no condensation


Working altitude

≤3000m


IP grade

≥IP65


Cooling mode

Natural cooling


Applicable

Indoor/Outdoor,No conductive dust, no corrosive gas, no explosive gas, no strong vibration


Special protection

UV resistance


MTBF

≥100000H

Optional

Installation components

Stand pillar (customize)


Communication interface

WIFI☑/4G□/LAN□/OCPP1.6□


RFID

2 user cards☑


Leakage protection

Upgrade to Type A 30mA AC + 6mA DC(three phase)

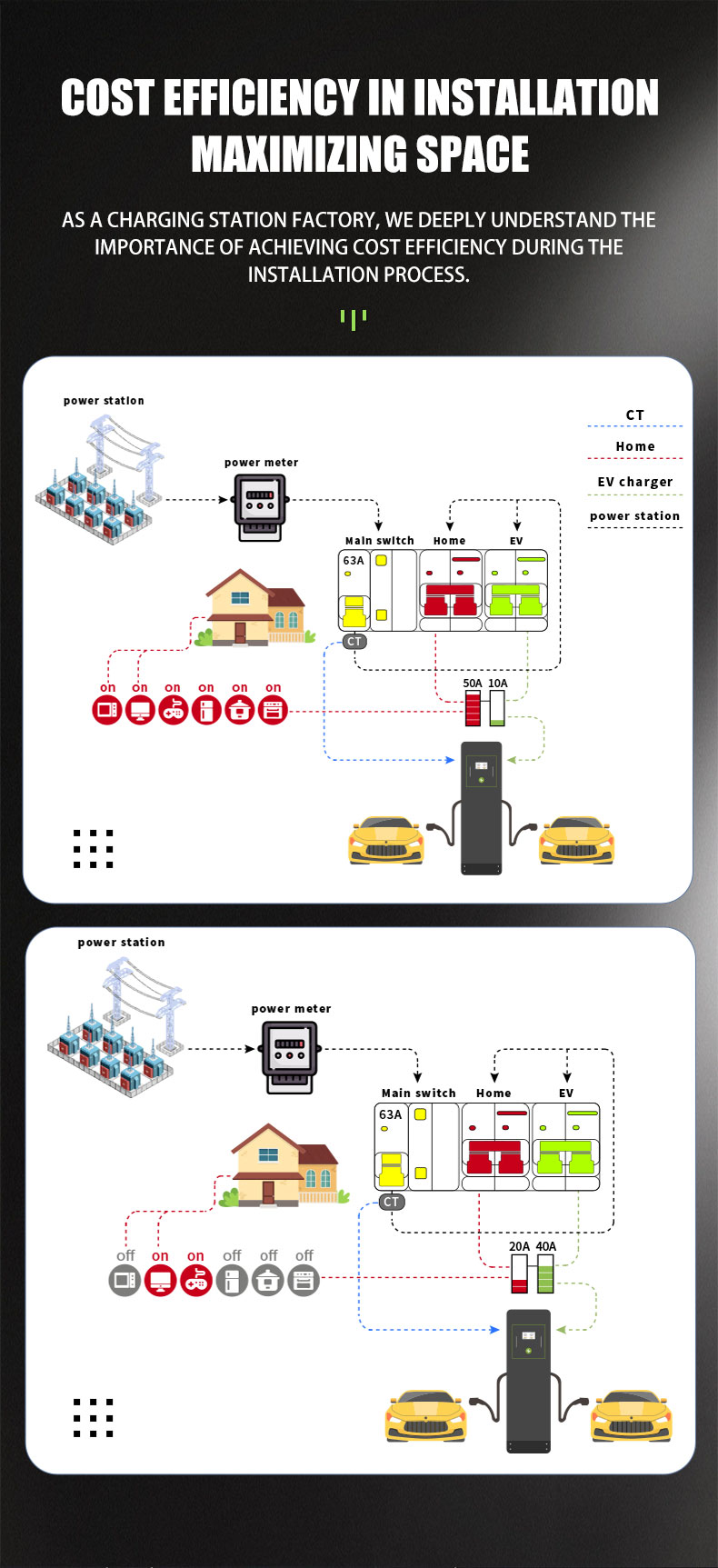

Home load balancing

DLB(customize)


Socket outlet

Change charging cable to socket(not support SAE standard)


Product properties

APP☑

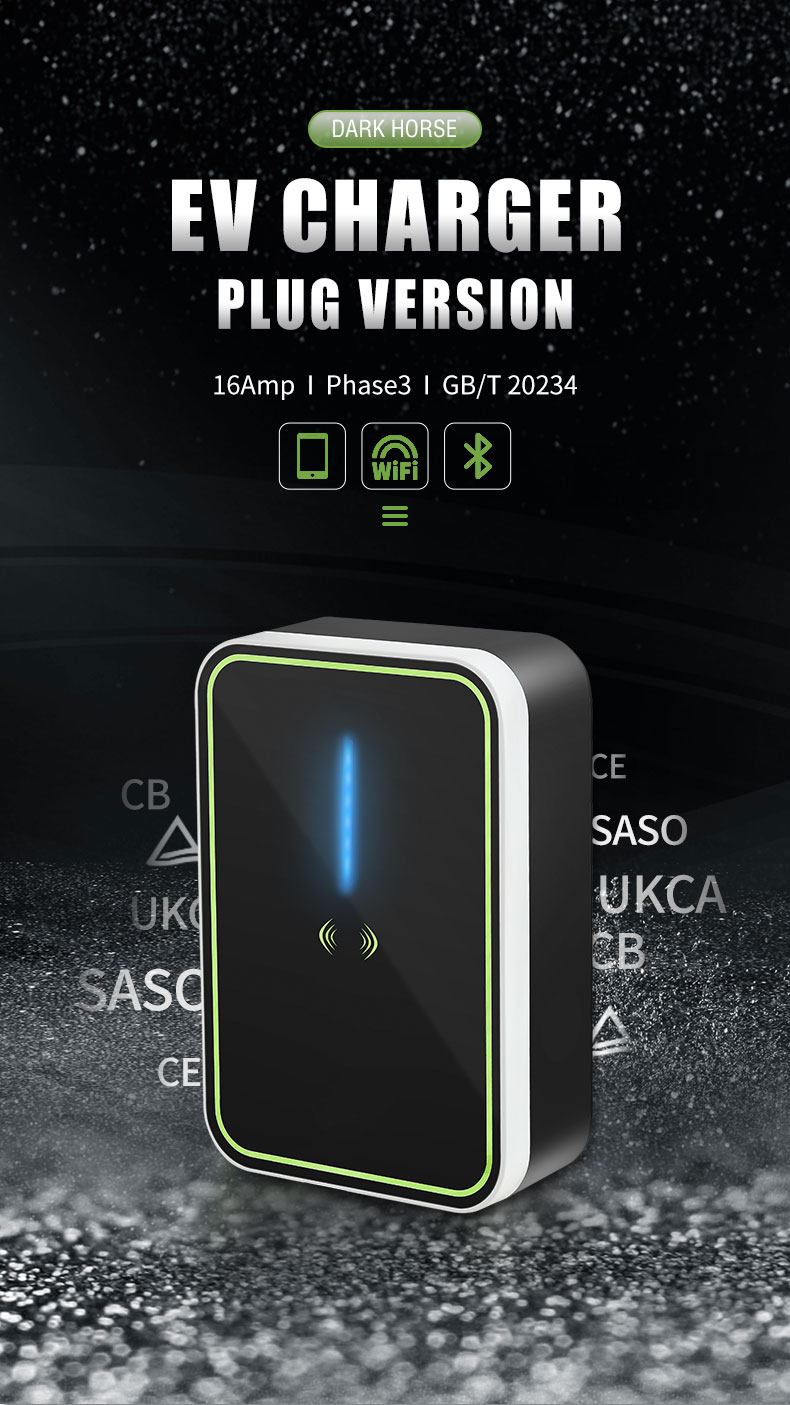

The APP& RFID Function EV Charger 16A GB/T 20234 380V,casing colours available in black and white, customised casing colours and charging string lengths available for larger orders. Compatible with GB/T 20234 , Designed with safety in mind, there are protection mechanisms forover-current,over-voltage andover-temperature problems, with a aggregate of 8 safety measures to cover the device and the auto during charging. The casing is made of ABS PC injection moulding and has a fire standing of UL94V_0. The factors of the main board are handed in well- known manufacturers, with dependable quality. The main control MCU is characterised by low power consumption, high performance and high integration. The operating temperature covers-40 °C-85 °C, which can meet the harsh working terrain.The EV charging string is made of high chastity bobby with excellent electrical conductivity, slow heating of the captain during high current charging and long operating time. The external cover is made of high quality cable, which is resistant to erosion and low temperatures, so that the charging string won't harden due to low temperatures and help the device from working duly. Easy to install, it's recommended to use hard wiring for the input power string. The installation height of the charging device is about1.5 M from the ground. a hook is included to store the ev charging string.



Features:

App-based control and monitoring of charging sessions

Real-time charging data and analytics

User authentication and access control

Integration with third-party platforms (e.g. smart home devices, fleet management systems)

Customizable branding and startup screen(MOQ 100)

Customizable RFID Card design(MOQ 1000)

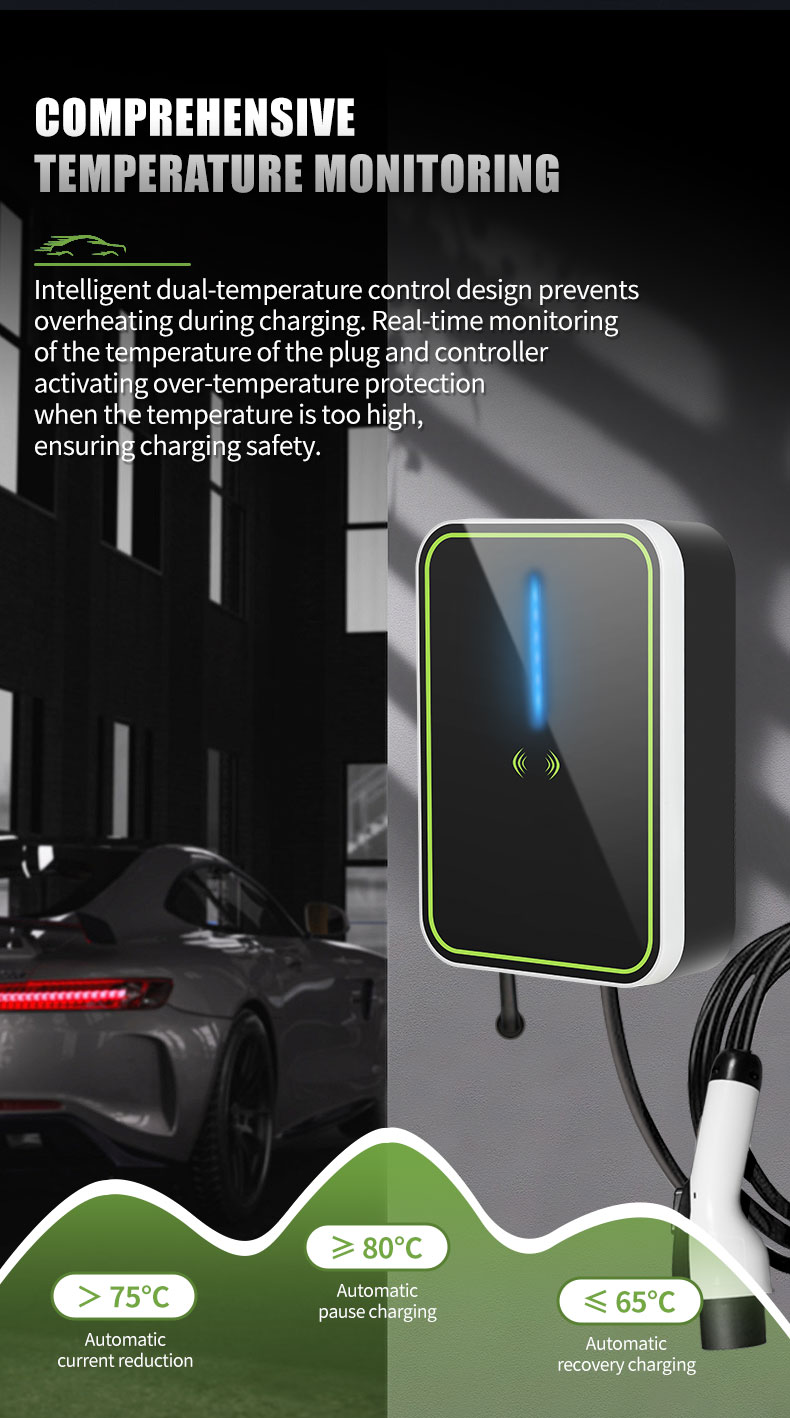

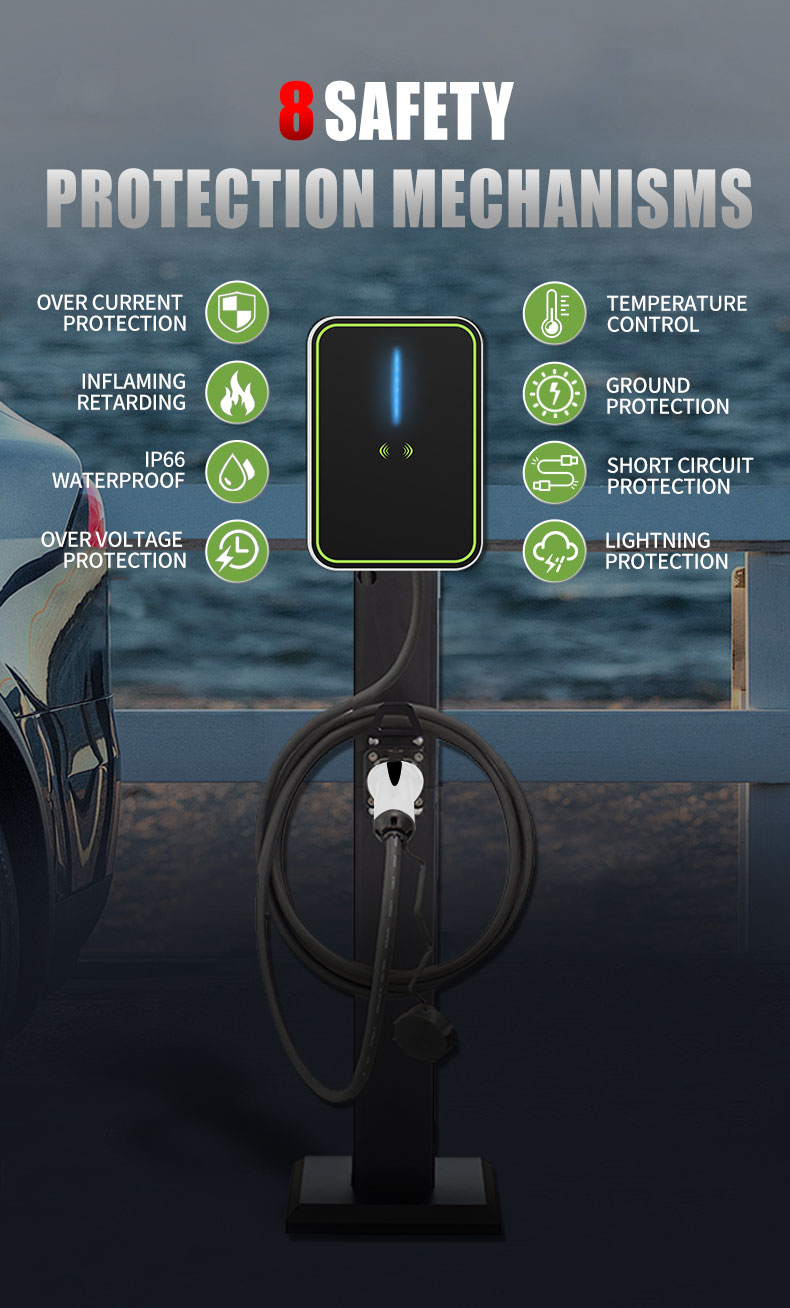

★Multiple Protections Ensure Safe Use - Safety always comes first. Our EV car charger has built-in protections against Lightning, Current-leakage, Overcurrent, Over-heat, Under-voltage, and Over-voltage, as indicated by the LED varied flashing frequency. It will automatically power off if any abnormal situation happens in case of any damage to your car.

★Flame retardant material - Anti-combustion, using flame-retardant materials to prevent accidents

★HIGH QUALITY - CE certified, which makes the service life longer, the internal smart chip protects your car and circuit you can use it with confidence.

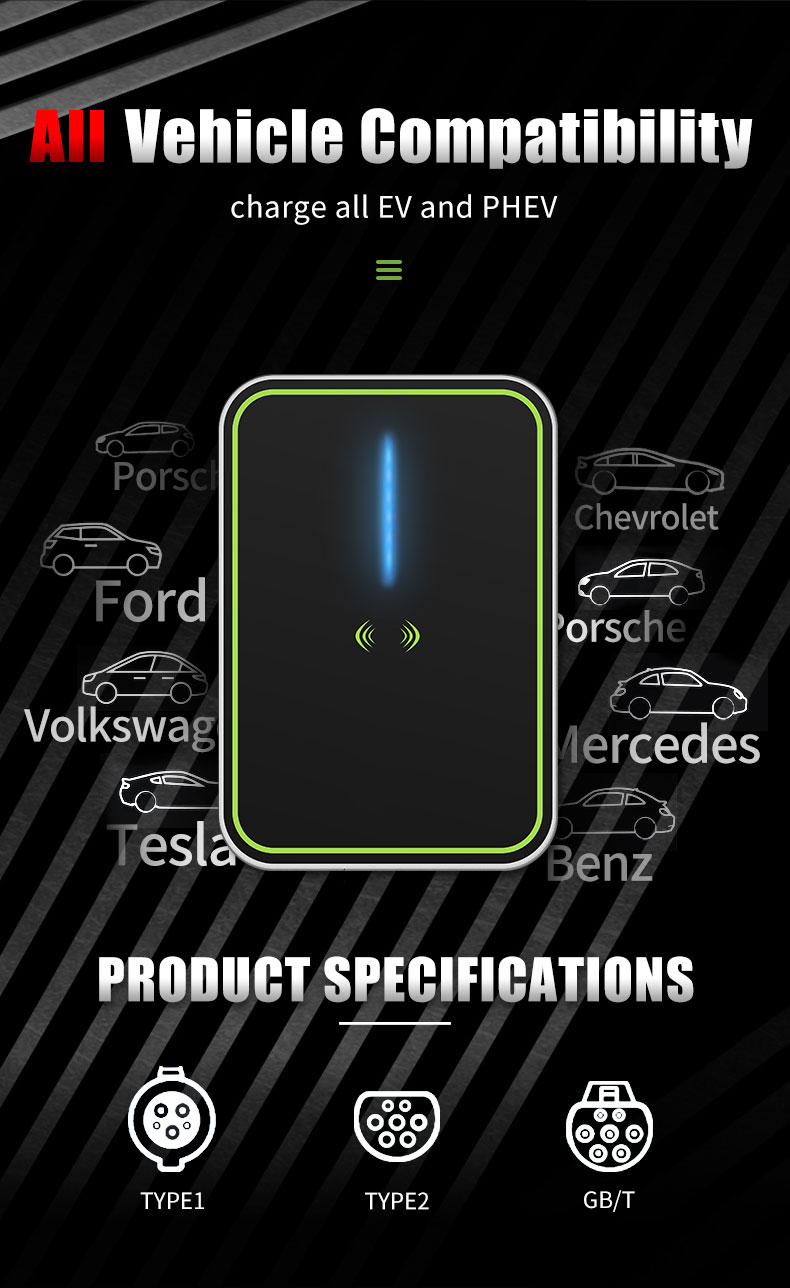

★UNIVERSAL - The charger is GB/T 20234 compliant and capable of charging hybrid/plug-in electric vehicles.

★Weatherproof for Outdoor or Indoor Use - Waterproof grade IP65.Place and move your portable charger anywhere around your home both inside and out

★Safe & Secure - Our chargers have over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection.

★Professional customer service - HENGYI's customer service team provides technical support and a 12-month warranty. If you are not completely satisfied, please contact us and we will solve it for you!

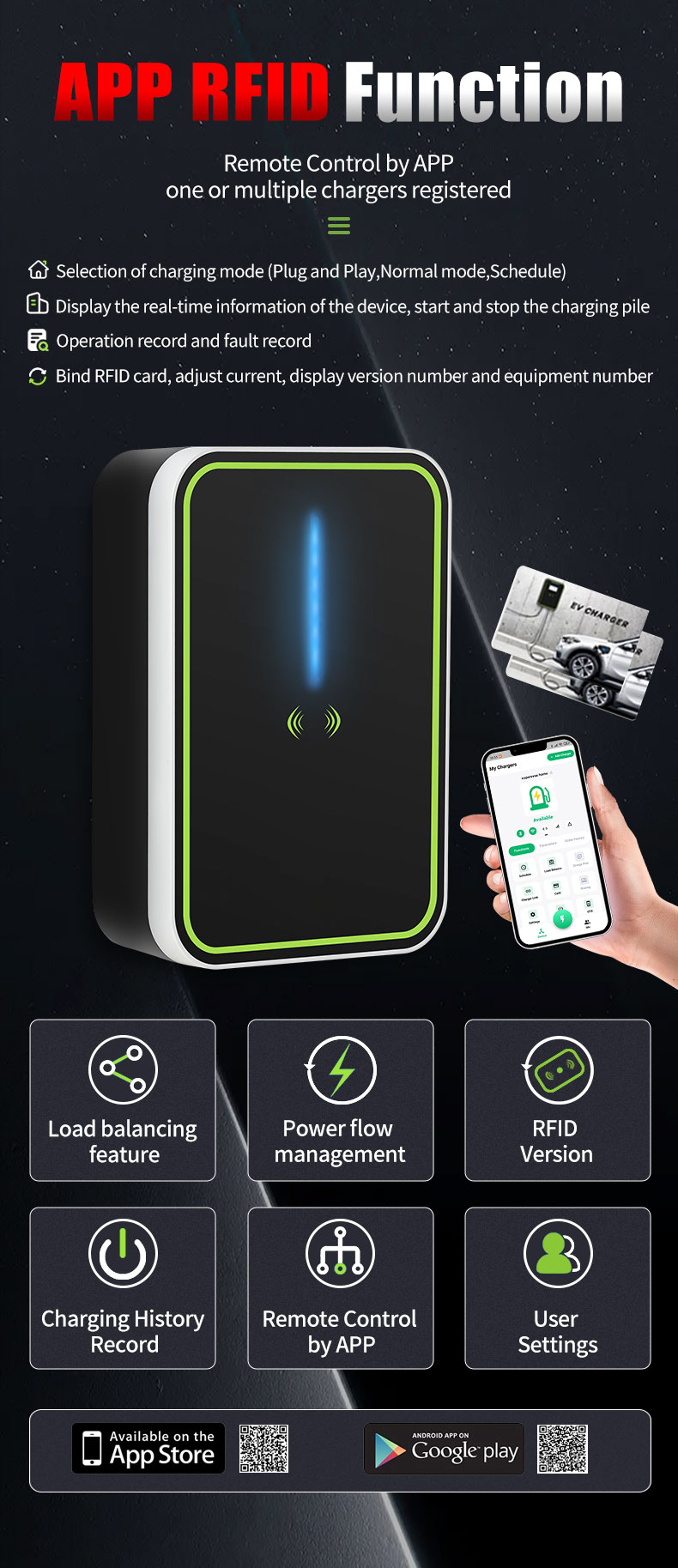

★Smart APP Control-Use EV Smart Charger APP to control your charger and manage charge times, schedule charging while you're away, and optimize your charging to take advantage of off peak electricity. Bluetooth enabled, Wi-Fi connectivity, and Ethernet access make sure your automatic over the air (OTA) remote firmware updates keep you connected at the times you need.

★RFID Cards*2- Carry it with you: RFID cards are very lightweight and can easily fit into wallets and pockets. Faster and easier to start charging.





  •
    With R&D team to support all kinds of OEM & ODM.
  •
    Our products are in the UK’s OZEV list.
  •
    We have our own manufacture factory.
  •
    We have our own patents!
  •
    Our products are of DLB function for special requirements!
  •
    There is APP for both Android and IOS system for remote control!
