Structure Appearance

Dimension

350(H) × 240(W) × 95(D)mm



User Interface

Indicator light

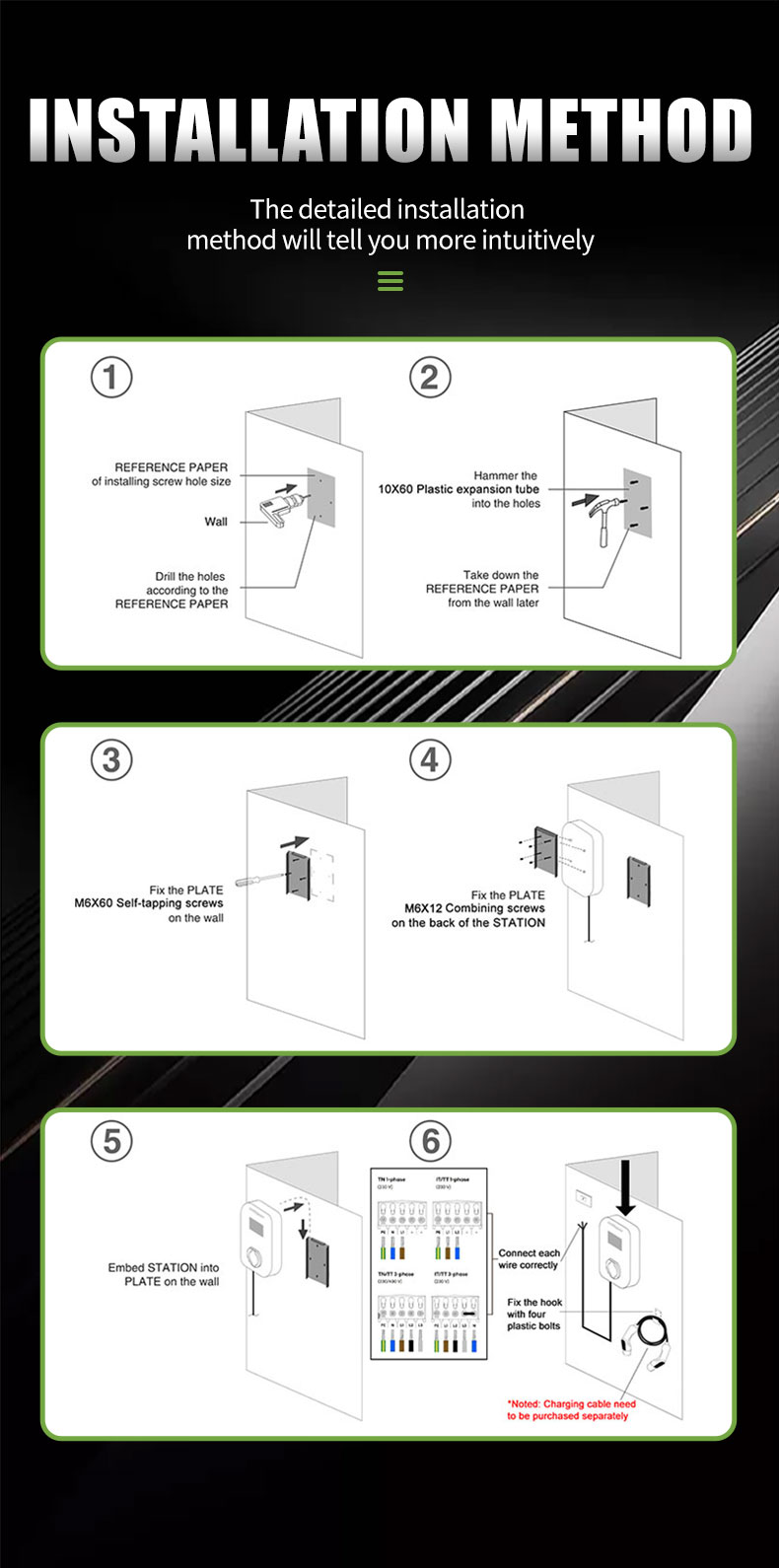

Installation method

Wall-mounted Type/Floor-standing Type Installation



Wiring method

Bottom enter&out



Cable length

INPUT CABLE 1M



Weight

7.0kg (no charging gun)

Electrical Specification

Input voltage

3800V



Frequency

45-65Hz



Power rating

22KW



Measurement accuracy

OBM 1.0



Output voltage

AC220±20%



Output current

32A



Standby power

3W

Function

Indicator light

YES



Display

YES

Protection

Design standard

IEC 61851



Protection

Overvoltage protection, undervoltage protection, overload protection, short circuit protection, ground protection, over temperature protection, lightning protection,type A 30mA leakage protection

Operating Environment

Working temperature

-40-+65℃



Working Humidity

5%-95% no condensation



Working altitude

≤3000m



IP grade

≥IP65



Cooling mode

Natural cooling



Applicable

Indoor/Outdoor,No conductive dust, no corrosive gas, no explosive gas, no strong vibration



Special protection

UV resistance



MTBF

≥100000H

Optional

Installation components

Stand pillar (customize)



Communication interface

WIFI☑/4G□/LAN□/OCPP1.6□



RFID

2 user cards☑



Leakage protection

Upgrade to Type A 30mA AC + 6mA DC(three phase)

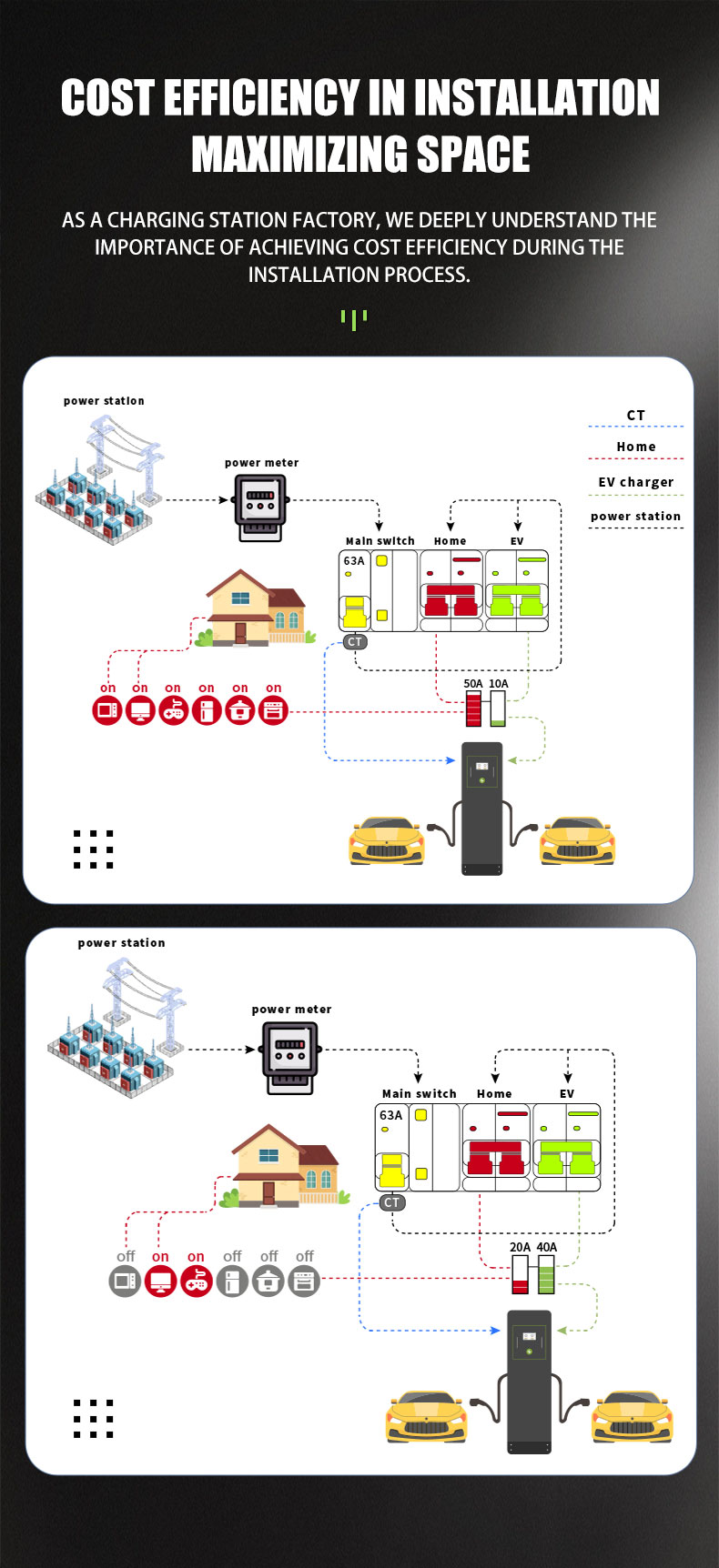

Home load balancing

DLB(customize)



Socket outlet

Change charging cable to socket(not support SAE standard)



Product properties

APP☑

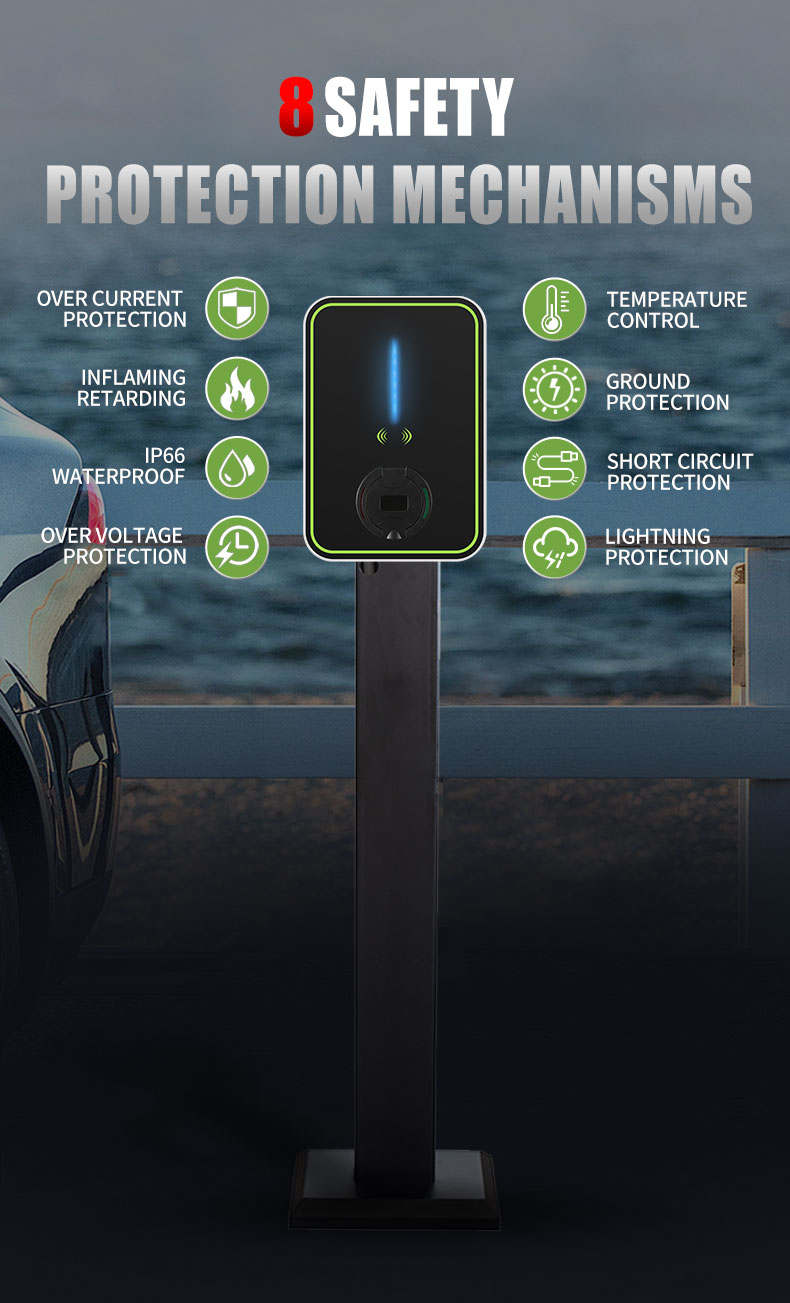

★Multiple Protections Ensure Safe Use - Safety always comes first. Our EV car charger has built-in protections against Lightning, Current-leakage, Overcurrent, Over-heat, Under-voltage, and Over-voltage, as indicated by the LED varied flashing frequency. It will automatically power off if any abnormal situation happens in case of any damage to your car.

★Flame retardant material - Anti-combustion, using flame-retardant materials to prevent accidents

★HIGH QUALITY - CE certified, which makes the service life longer, the internal smart chip protects your car and circuit you can use it with confidence.

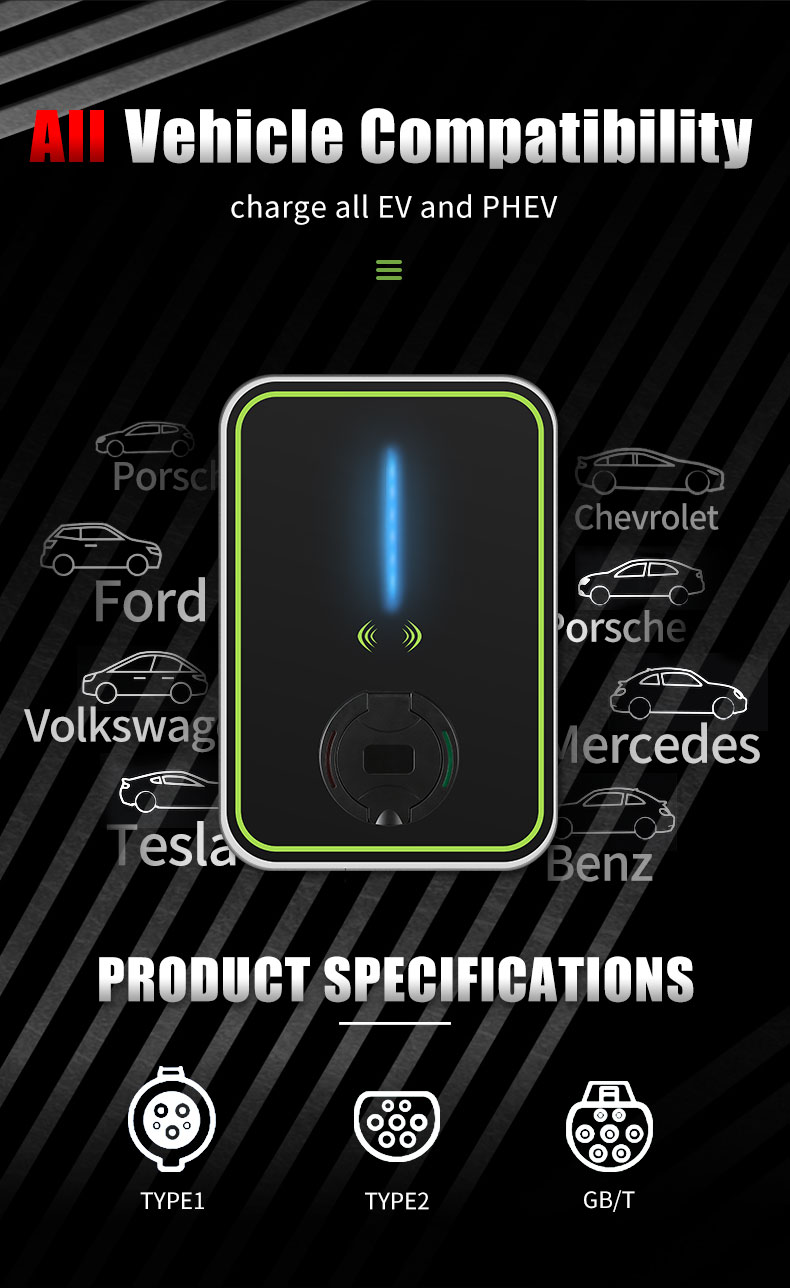

★UNIVERSAL - The charger is IEC 61851 compliant and capable of charging hybrid/plug-in electric vehicles.

★Weatherproof for Outdoor or Indoor Use - Waterproof grade IP65.Place and move your portable charger anywhere around your home both inside and out

★Safe & Secure - Our chargers have over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection.

★Professional customer service - HENGYI's customer service team provides technical support and a 12-month warranty. If you are not completely satisfied, please contact us and we will solve it for you!

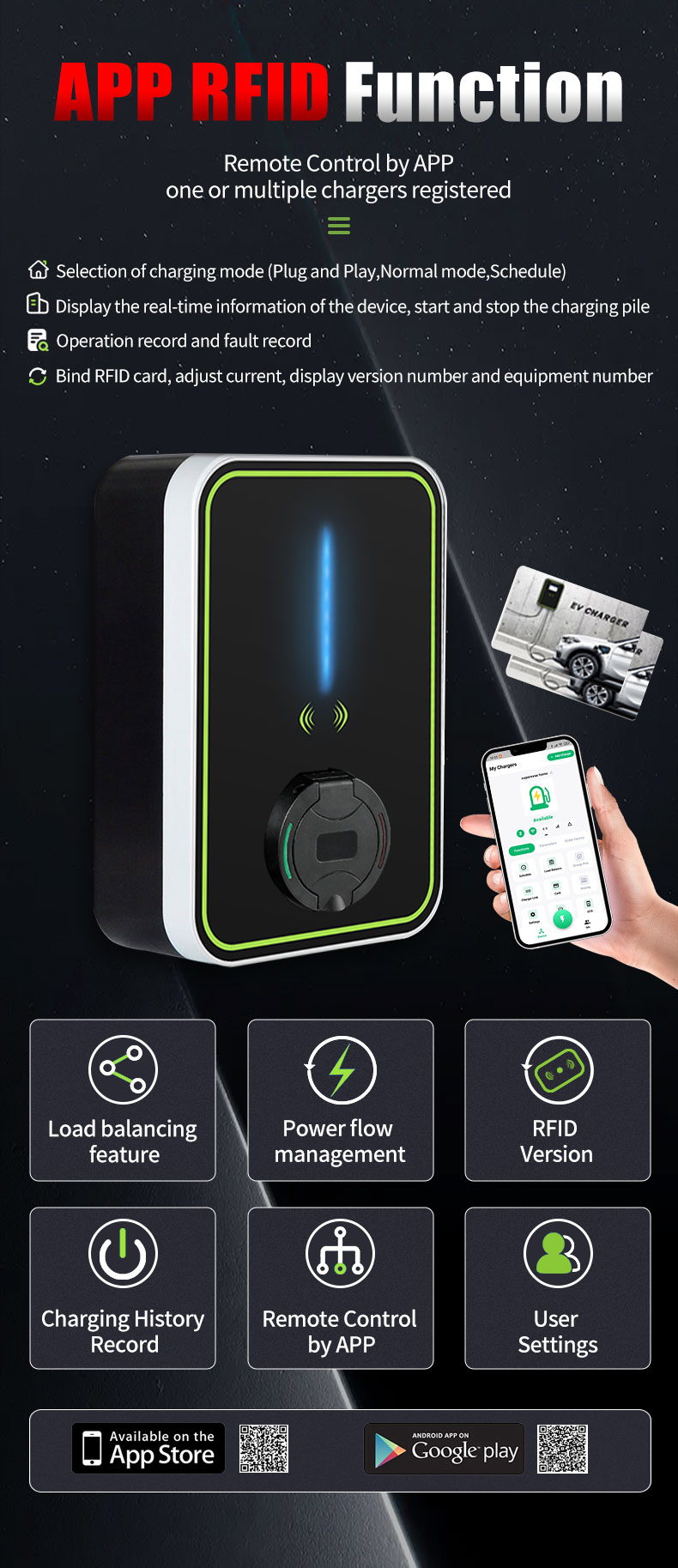

★Smart APP Control-Use EV Smart Charger APP to control your charger and manage charge times, schedule charging while you're away, and optimize your charging to take advantage of off peak electricity. Bluetooth enabled, Wi-Fi connectivity, and Ethernet access make sure your automatic over the air (OTA) remote firmware updates keep you connected at the times you need.

★RFID Cards*2- Carry it with you: RFID cards are very lightweight and can easily fit into wallets and pockets. Faster and easier to start charging.






  •

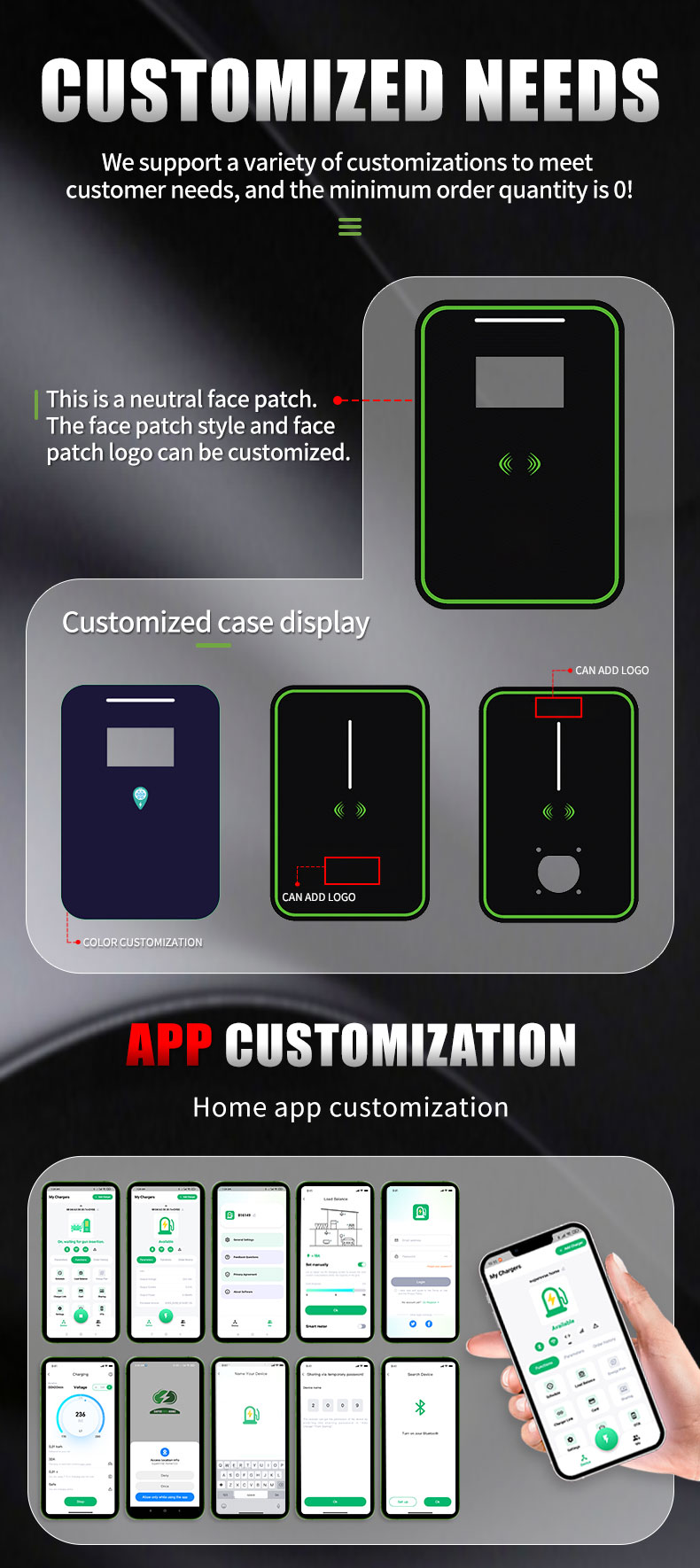

    With R&D team to support all kinds of OEM & ODM.
  •
    Our products are in the UK’s OZEV list.
  •
    We have our own manufacture factory.
  •
    We have our own patents!
  •
    Our products are of DLB function for special requirements!
  •
    There is APP for both Android and IOS system for remote control!
