Product Introduction

This series of portable AC charging pile testers are mainly used for online debugging, offline testing, functional verification, and construction after-sales testing of European standard AC charging pile products. The tester truly simulates the charging process of a real car. It has the characteristics of small size and easy to carry, while avoiding the disadvantages of inconvenience in testing and use and failure to simulate failure caused by the use of electric vehicles as the detection device.

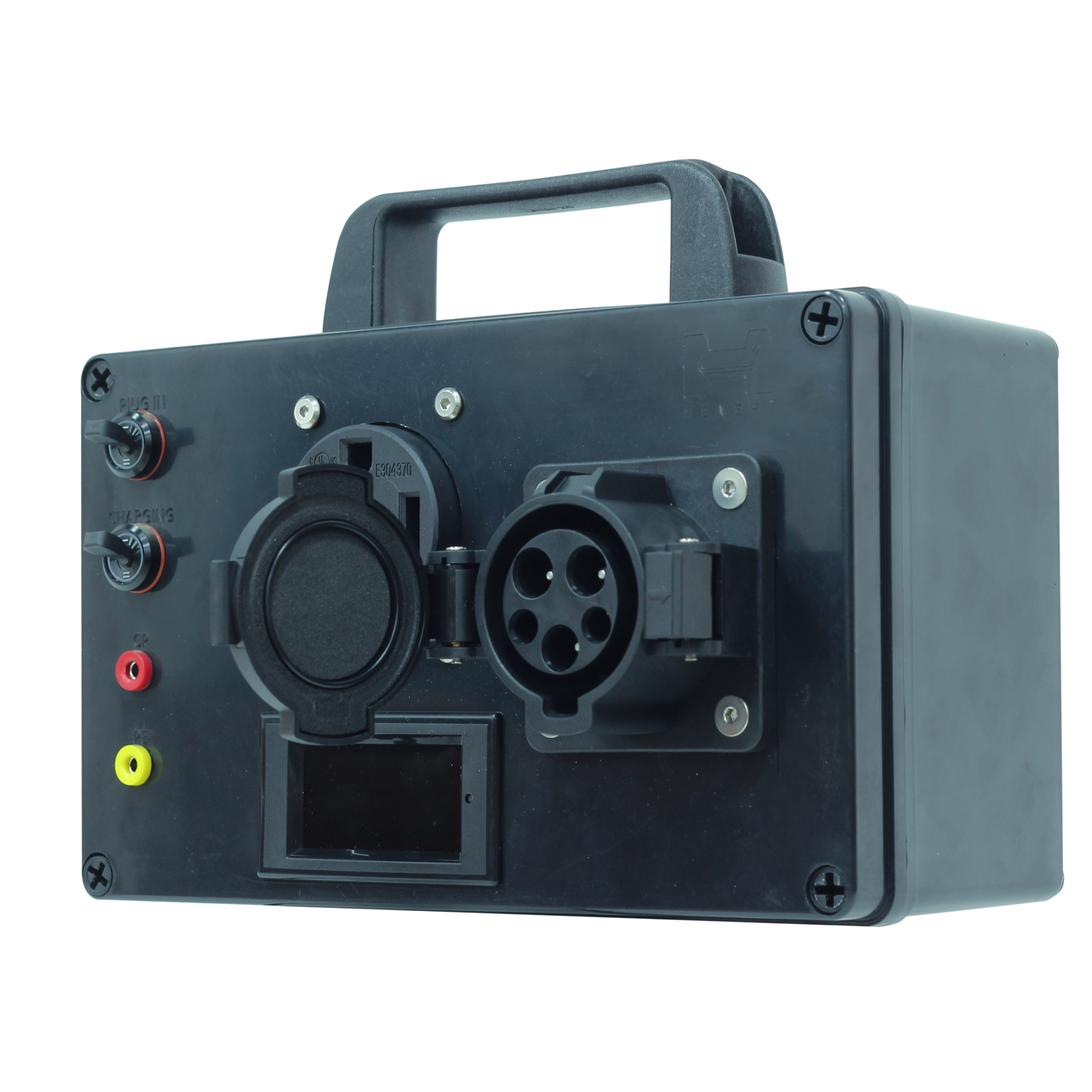

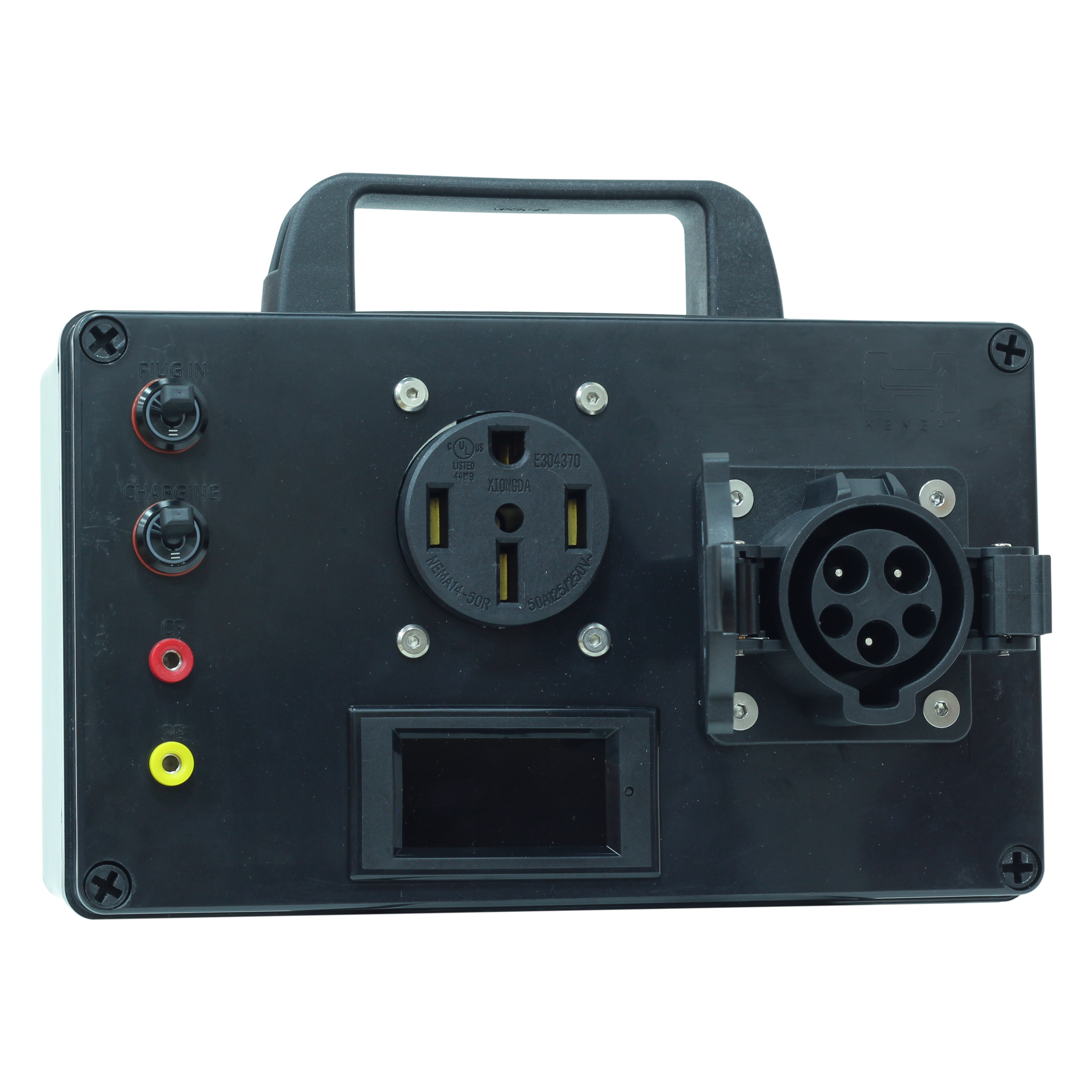

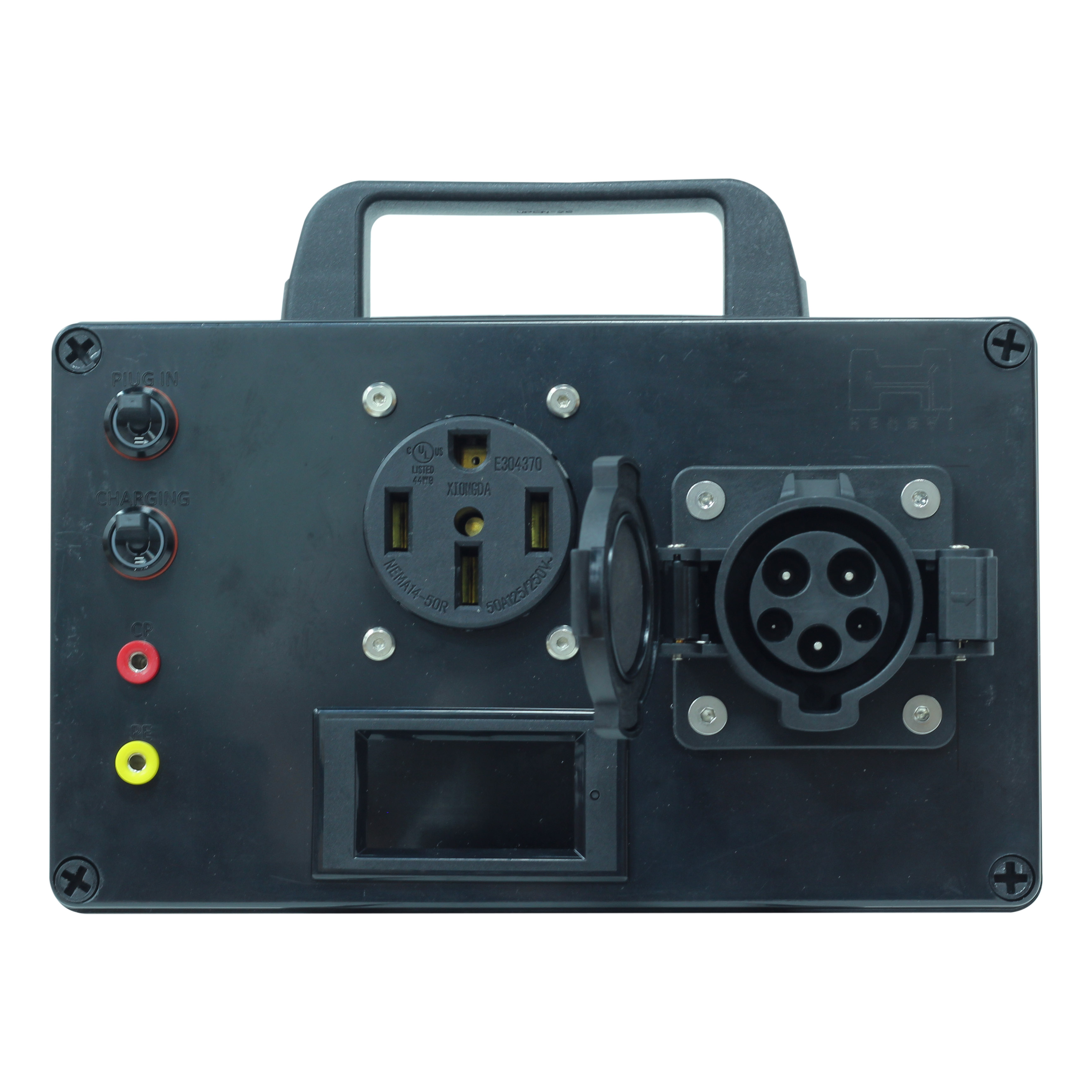

This series of portable AC charging pile tester mainly has charging voltage measurement, guide circuit control (controlled by charging switch) and other functions, single three-phase common. By measuring the charging voltage, you can determine whether the charging pile is output as required. By switching the charging switch, you can determine whether the charging pile is enabling and shuting down the output as required. Product specific panel schematic shown in Figure 1, mainly has the European standard AC charging car socket interface, plug gun control switch, charging controlswitch,AC volt meter, load expansion port composition.

    With R&D team to support all kinds of OEM & ODM.
    Our products are in the UK’s OZEV list.
    We have our own manufacture factory.
    We have our own patents!
    Our products are of DLB function for special requirements!
    There is APP for both Android and IOS system for remote control!
